BW30HRLE-440i FilmTec™ DOW / DuPont 150 PSI at 12,650 GPD 8 x 40 inch Brackish Water Membranes
Couldn't load pickup availability
DuPont FilmTec™ BW30HRLE-440i High Rejection, Low Energy RO Element
The DuPont FilmTec™ BW30HRLE-440i is a premier Brackish Water Reverse Osmosis (BWRO) element engineered to provide exceptional water quality while operating at pressures up to lower than standard BWRO elements. This element is the top choice for large-scale industrial and municipal applications seeking reduced energy consumption and lower operational costs (OPEX).
It features a large active area of and includes the patented iLEC™ interlocking end caps, which reduce the risk of o-ring leaks and simplify element loading. The element delivers a nominal permeate flow of with a high stabilized salt rejection of (tested against at ). Its chemical tolerance and wide cleaning range () provide superior cleaning performance and robustness for long element life.
Specifications Table
|
Characteristic |
Specification |
Units / Notes |
|
Model |
BW30HRLE-440i |
High Rejection, Low Energy RO |
|
Manufacturer |
DuPont FilmTec™ |
- |
|
Membrane Type |
Polyamide Thin-Film Composite |
TFC |
|
Element Dimensions (Nominal) |
inches (Diameter x Net Length) |
|
|
Active Area |
440 (41) |
sq ft (sq m) |
|
Permeate Flow Rate (Nominal) |
12,650 (48) |
GPD (m³/day). tolerance |
|
Stabilized Salt Rejection |
(Minimum ) |
|
|
Applied Pressure (Test) |
150 (10.3) |
PSI (Bar) |
|
Max Operating Pressure |
600 (41) |
PSI (Bar) |
|
Feed Spacer Thickness |
28 |
mil |
|
End Cap |
iLEC™ Interlocking |
Reduces O-Ring Leaks |

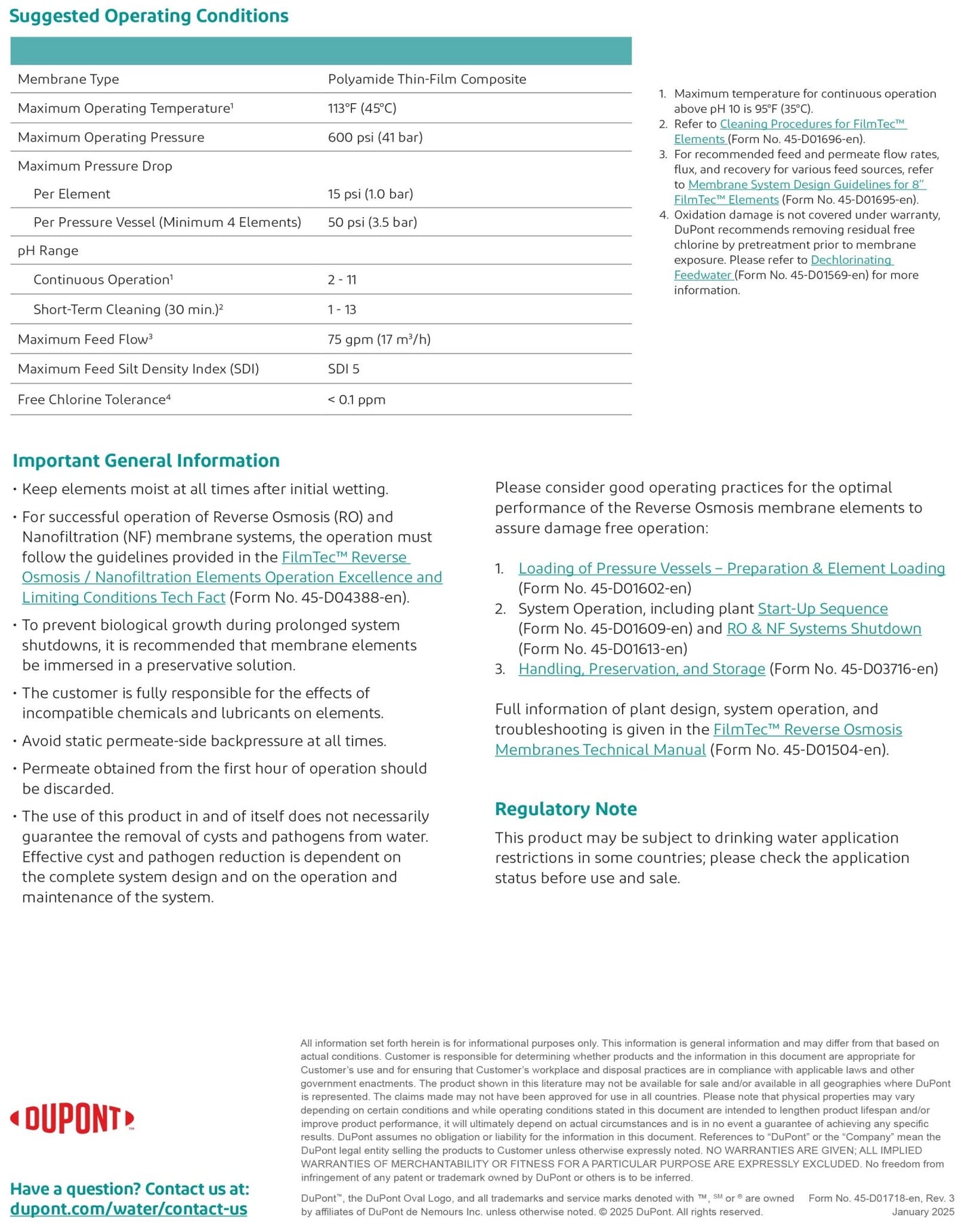

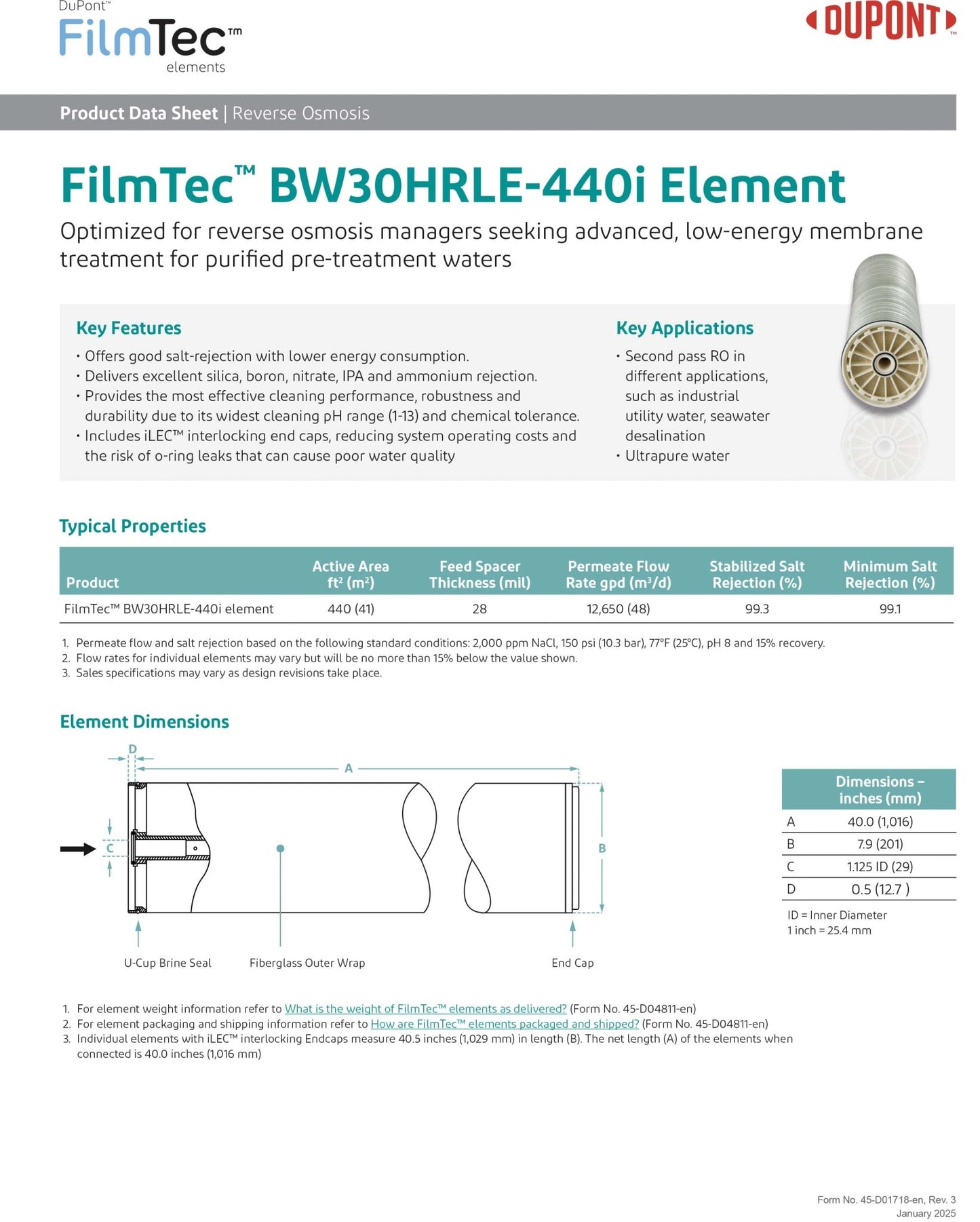

TO VIEW DATA SHEETS LARGER RIGHT CLICK SHEET AND SELECT OPEN IMAGE IN NEW TAB
