Fluid-o-Tech

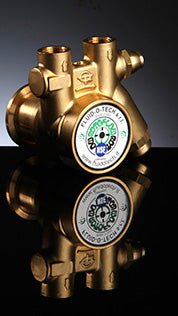

PA 070 Brass 20-30 GPH 3/8" NPT Mini Fluid-o-Tech Rotary Vane Pumps
Regular price
$156.88 USD
Regular price
Sale price
$156.88 USD
Quantity
Couldn't load pickup availability
PA 070 Clamp Mount Brass 20-30 GPH .33-.5 GPM 3/8" NPT Small Miniature Rotoflow Fluid-o-Tech Rotary Vane Pumps.
| Part # | Bypass | Mount | Body | 1450 RPM | 1725 RPM | Req. HP @ 200 PSI | ||||||
| 100 PSI | 200 PSI | 100 PSI | 200 PSI | |||||||||
| GPH | LPH | GPH | LPH | GPH | LPH | GPH | LPH | |||||
| PA 070 | No | Clamp | Brass | 25 | 95 | 20 | 76 | 30 | 114 | 24 | 91 | 1/4 |
The PO 70-400 series positive displacement rotary vane pumps are available with brass or stainless steel housings with 3/8” GAS or NPT ports and internal relief valve. The nominal flow rates range between 70 and 400 l/h at 1450 rpm. Any vane pump of this series may be operated at 1725 rpm as well and will provide about 20% more capacity, with a maximum of 530 l/h. Maximum discharge pressure is 16 bar (230 psi). This series mounts directly to NEMA 48Y motors by means of a v-band clamp and to M71, M80 IEC and NEMA 56C motors by means of an adapter and relevant coupling.
