Fluid-o-Tech

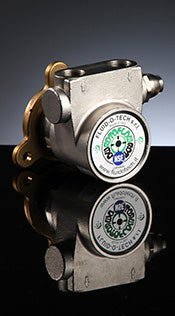

PA0711F / PA 0711F Fluid-o-Tech 30 GPH 0.50 GPM Standard Bypass Stainless Steel Rotary Vane Pump
Regular price
$305.64 USD
Regular price
Sale price
$305.64 USD
Quantity
Couldn't load pickup availability
IN STOCK & AVAILABLE FOR FAST IMMEDIATE SHIPMENT from The United States!
- FREE SHIPPING to The Contiguous United States! (Excluding Alaska & Hawaii)
- Found a Better Price? Contact Us, We'll See if We Can Get You a Better Deal!
- Unopened in Original Manufacturer's Packaging!
- Manufacturer's Warranty Included!
- For Quantity Discounts Contact Us for a Quote!
- Customers Outside The Contiguous United States, Please Contact Us for a Quote!
- Call: 1 (760) 598-0189
- Email: hctivista@gmail.com
We are an Authorized Distributor for Fluid-o-Tech
PA0711F / PA 0711F Fluid-o-Tech 30 GPH 0.50 GPM Standard Bypass Stainless Steel Rotary Vane Pump
| Part # | Bypass | Mount | Body | 1450 RPM | 1725 RPM | Req. HP @ 200 PSI | ||||||
| 100 PSI | 200 PSI | 100 PSI | 200 PSI | |||||||||
| GPH | LPH | GPH | LPH | GPH | LPH | GPH | LPH | |||||
| PA 0711F | Yes | Flange | Stainless steel | 25 | 95 | 20 | 76 | 30 | 114 | 24 | 91 | 1/4 |
The PO 70-400 series positive displacement rotary vane pumps are available with brass or stainless steel housings with 3/8” GAS or NPT ports and internal relief valve. The nominal flow rates range between 70 and 400 l/h at 1450 rpm. Any vane pump of this series may be operated at 1725 rpm as well and will provide about 20% more capacity, with a maximum of 530 l/h. Maximum discharge pressure is 16 bar (230 psi). This series mounts directly to NEMA 48Y motors by means of a v-band clamp and to M71, M80 IEC and NEMA 56C motors by means of an adapter and relevant coupling.
