PA3504 / PA 3504 Fluid-o-Tech 125 GPH 2.08 GPM Balanced Bypass Compact Brass Rotary Vane Pump

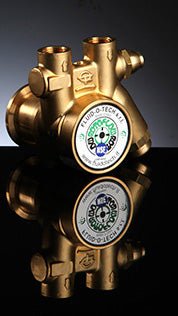

PA 3504 Fluid-o-Tech Brass Rotary Vane Pump
The PA 3504 is an industrial-grade rotary vane pump engineered by Fluid-o-Tech to handle demanding water treatment, beverage dispensing, and cooling system applications. Manufactured with a heavy-duty, low-lead brass housing, this robust direct-drive pump provides safe and reliable performance for potable water setups. It features a specialized built-in balanced bypass valve, which allows the pump to autonomously maintain a consistent, pre-set operating pressure even when inlet feed pressures fluctuate.
Internally, the PA 3504 is built to withstand continuous-duty operation. It utilizes an AISI 303 stainless steel rotor combined with a high-impact carbon graphite pumping chamber and vanes. This precision engineering ensures a smooth, pulsation-free output that protects sensitive downstream equipment from pressure spikes. Designed for straightforward integration, the pump is equipped with standard 3/8-inch NPT ports and uses a secure metallic clamp mount for quick connection to compatible motors.
| Specification | Details |
| Manufacturer | Fluid-o-Tech |
| Model Number | PA 3504 |
| Pump Type | Rotary Vane Pump |
| Housing Material | Brass (Low-Lead / NSF Compliant) |
| Rotor Material | AISI 303 Stainless Steel |
| Chamber & Vanes Material | Carbon Graphite |
| Bypass Type | Built-In Balanced Bypass |
| Port Size | 3/8" NPT |
| Mounting Style | Clamp Mount |
| Max Flow Rate | 125 GPH |
| Max Static Pressure | 290 PSI (20 bar) |
| Max Operating Temp | 158°F (70°C) |
