Fluid-o-Tech

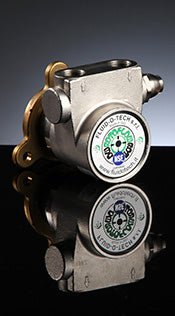

PA 3511F / PA3511F Fluid-o-Tech 125 GPH 2.08 GPM Standard Bypass Stainless Steel Rotary Vane Pump PA0351HHCDN0000

$356.00 USD
$356.00 USD
Sale Sold out

PA 3511F / PA3511F Fluid-o-Tech 125 GPH 2.08 GPM Standard Bypass Stainless Steel Rotary Vane Pump PA0351HHCDN0000

  • Free Shipping to the Continental United States!

  • IN STOCK & SHIPS FROM THE UNTIED STATES!

  • Brand New Unopened in Original Manufacturer's Packaging!

  • For Quantity Discounts Contact Us for a Quote!

  • For International Shipments Contact Us for a Quote!

  • Call: 1 (760) 598-0189

  • Email: hctivista@gmail.com



PLEASE REFERENCE TABLE BELOW



Fluid-o-Tech PA 3511F High-Flow Brass Rotary Vane Pump with Bypass Valve

The Fluid-o-Tech PA 3511F is a powerful brass rotary vane pump belonging to the high-capacity Rotoflow® line. This pump is engineered for large commercial and industrial systems requiring smooth, pulse-free fluid output up to 900 LPH (238 GPH) at moderate to high pressures.

The PA prefix confirms that this model includes a built-in, adjustable bypass/relief valve, which is essential for safely controlling the maximum discharge pressure and protecting the system and motor. The Flange Mount ('F') design ensures a stable, robust connection directly to a compatible motor shaft. Constructed with a durable brass housing, stainless steel rotor, and carbon graphite internals, the PA 3511F is widely used in high-volume reverse osmosis boost systems, large carbonators, chillers, and chemical metering systems involving non-aggressive liquids.



Product Accuracy & Specifications: While we make every effort to ensure the accuracy of the information provided, Hydrocomponents & Technologies Inc. assumes no responsibility for errors, omissions, or typographical errors in product descriptions or specifications. Product specifications, including dimensions, materials, and performance ratings, are provided by the manufacturers and are subject to change without notice. Please consult the manufacturer's official documentation for the most current data before purchase.



Technical Specifications Summary

SPECIFICATION DETAILS NOTES
Model Number PA 3511F 'PA' indicates built-in bypass valve; 'F' indicates Flange Mount.
Manufacturer Fluid-o-Tech High-capacity model in the PO/PA 300-3500 series.
Pump Type Rotary Vane (Positive Displacement) Outputs smooth, pulse-free fluid transfer.
Housing Material Brass Durable construction for water and mild fluids.
Internal Materials Stainless Steel Rotor, Carbon Graphite Vanes Designed for long service life.
Bypass Valve Built-in and Adjustable Allows system pressure control without external components.
Port Size 3/4" NPT or GAS Thread Larger ports for high flow requirements.
Nominal Flow (60 Hz / 1725 RPM) 238 GPH (900 LPH) High-volume flow rate.
Max Differential Pressure 16 bar (230 PSI) Maximum continuous differential pressure rating.
Max Static Pressure 20 bar (290 PSI) Maximum static pressure limit.
Max Operating Temp () Maximum fluid temperature limit.





Part # Bypass Mount Body 1450 RPM       1725 RPM       Req. HP @ 200 PSI
        100 PSI   200 PSI   100 PSI   200 PSI
        GPH LPH GPH LPH GPH LPH GPH LPH
PA 3511F Yes Flange Stainless steel 103 390 98 371 123 466 117 443   1/2



The PO 70-400 series positive displacement rotary vane pumps are available with brass or stainless steel housings with 3/8” GAS or NPT ports and internal relief valve. The nominal flow rates range between 70 and 400 l/h at 1450 rpm. Any vane pump of this series may be operated at 1725 rpm as well and will provide about 20% more capacity, with a maximum of 530 l/h. Maximum discharge pressure is 16 bar (230 psi). This series mounts directly to NEMA 48Y motors by means of a v-band clamp and to M71, M80 IEC and NEMA 56C motors by means of an adapter and relevant coupling.
