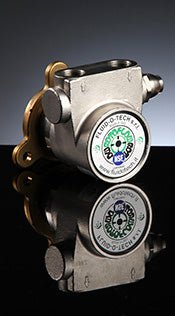

PA 410 Clamp Mount Stainless Steel 113-140 GPH 1.88-2.33 GPM 3/8" NPT Small Miniature Rotoflow Fluid-o-Tech Rotary Vane Pumps.
| Part # |
Bypass |
Mount |
Body |
1450 RPM |
|
|
|
1725 RPM |
|
|
|
Req. HP @ 200 PSI |
| |
|
|
|
100 PSI |
|
200 PSI |
|
100 PSI |
|
200 PSI |
|
|
| |
|
|
|
GPH |
LPH |
GPH |
LPH |
GPH |
LPH |
GPH |
LPH |
|
| PA 410 |
No |
Clamp |
Stainless steel |
118 |
447 |
113 |
428 |
140 |
530 |
134 |
507 |
1/2 |
FREE SHIPPING TO THE CONTIGUOUS UNITED STATES!
FOR QUANTITY PRICING AND ORDERS OUTSIDE THE CONTIGUOUS U.S. PLEASE CONTACT US FOR A QUOTE!
The PO 70-400 series positive displacement rotary vane pumps are available with brass or stainless steel housings with 3/8” GAS or NPT ports and internal relief valve. The nominal flow rates range between 70 and 400 l/h at 1450 rpm. Any vane pump of this series may be operated at 1725 rpm as well and will provide about 20% more capacity, with a maximum of 530 l/h. Maximum discharge pressure is 16 bar (230 psi). This series mounts directly to NEMA 48Y motors by means of a v-band clamp and to M71, M80 IEC and NEMA 56C motors by means of an adapter and relevant coupling.
