PA0301HHCDN0000 Fluid-o-Tech 100 GPH 1.67 GPM Standard Bypass Stainless Steel Rotary Vane Pump

PA0301HHCDN0000 Fluid-o-Tech 100 GPH 1.67 GPM Standard Bypass Stainless Steel Rotary Vane Pump

Regular price $258.75 USD
Regular price Sale price $258.75 USD
Sale Sold out
Quantity

PA0301HHCDN0000 Fluid-o-Tech 100 GPH 1.67 GPM Standard Bypass Stainless Steel Rotary Vane Pump

  • FREE SHIPPING to the Continental United States!

  • In Stock & Ships from the United States!

  • Financing Options Available at Chekout via Shop Pay & Paypal!

  • For International Shipments Contact Us for a Quote!

  • For Quantity Pricing Contact Us for a Quote!

  • Call: 1 (760) 598-0189

  • Email: hctivista@gmail.com


PLEASE REFERENCE DATA SHEETS & TABLE BELOW



Fluid-o-Tech PA0301HHCDN0000 Rotary Vane Pump



The Fluid-o-Tech PA0301HHCDN0000 is a high-performance positive displacement rotary vane pump from the versatile PO/PA 70-400 Series. Designed for commercial espresso machines and beverage dispensing systems, this model delivers a consistent flow rate of 300 LPH (approximately 80 GPH). The "F" designation typically highlights the inclusion of an integral wire mesh filter on the inlet side, which protects the internal components from debris and extends the pump's operational life.

Constructed with a Brass housing and a stainless steel rotor, the PA0301HHCDN0000 utilizes a Carbonator Clamp interface for easy mounting to standard motors. It features 3/8" NPT inlet and outlet ports and comes equipped with a standard internal bypass valve. This relief valve manages system pressure (adjustable up to ~230 PSI), ensuring safe operation and consistent extraction pressure, making it a reliable choice for high-volume coffee service and water circulation applications.



SPECIFICATION DETAILS
Model Number PA0301HHCDN0000
Manufacturer Fluid-o-Tech
Series PO/PA 70-400
Pump Type Rotary Vane Pump
Housing Material Brass
Nominal Flow Rate 300 LPH (80 GPH)
Displacement Positive Displacement
Mounting Style Carbonator Clamp (Band Clamp)
Inlet/Outlet Ports 3/8" NPT(F)
Feature Integral Inlet Filter (100 Mesh)
Internal Bypass Yes (Standard Relief)
Max Static Pressure 290 PSI (20 Bar)
Operating Pressure Adjustable (~230 PSI Max)
Max Liquid Temp 158°F (70°C)
Shaft Connection Double Flat Drive



Part # Bypass Mount Body 1450 RPM       1725 RPM       Req. HP @ 200 PSI
        100 PSI   200 PSI   100 PSI   200 PSI
        GPH LPH GPH LPH GPH LPH GPH LPH
PA0301HHCDN0000 Yes Flange Stainless steel 90 341 85 322 107 405 101 382   1/2


The PO 70-400 series positive displacement rotary vane pumps are available with brass or stainless steel housings with 3/8” GAS or NPT ports and internal relief valve. The nominal flow rates range between 70 and 400 l/h at 1450 rpm. Any vane pump of this series may be operated at 1725 rpm as well and will provide about 20% more capacity, with a maximum of 530 l/h. Maximum discharge pressure is 16 bar (230 psi). This series mounts directly to NEMA 48Y motors by means of a v-band clamp and to M71, M80 IEC and NEMA 56C motors by means of an adapter and relevant coupling.

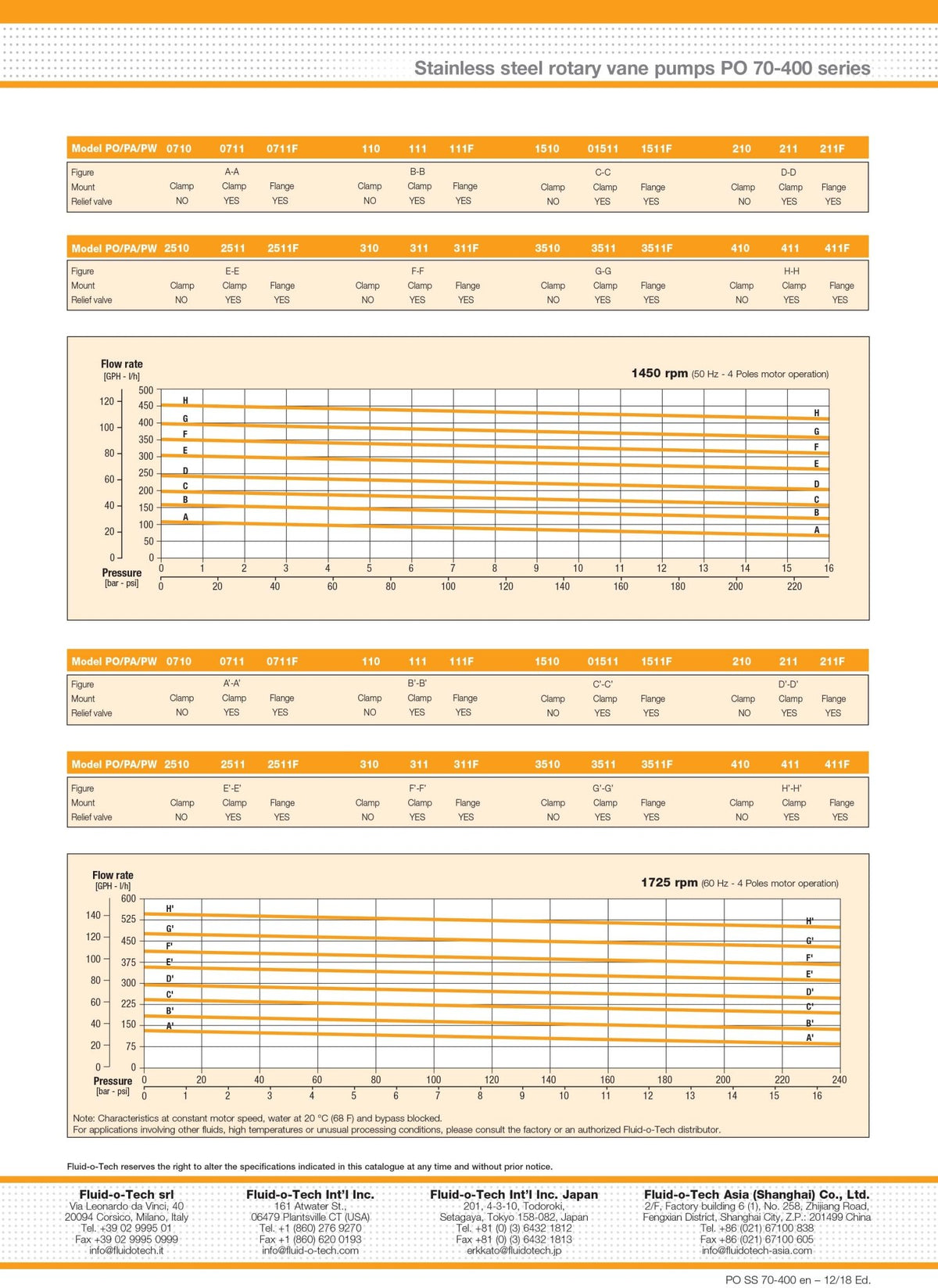

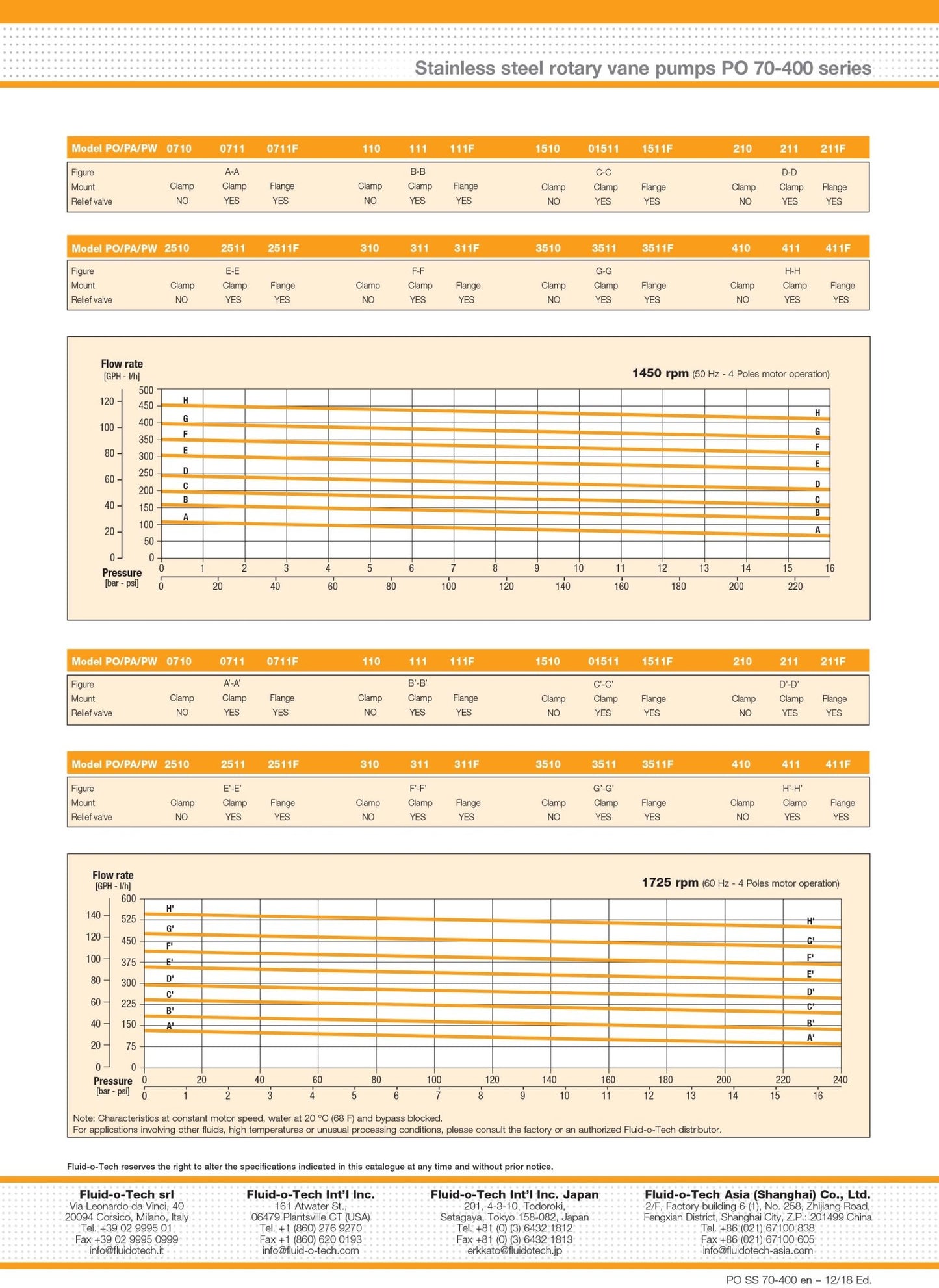

VIEW DATA SHEETS LARGER BY RIGHT CLICKING SHEET AND SELECTING OPEN IMAGE IN NEW TAB
