PA0401ANCNN0000 Fluid-o-Tech 140 GPH 2.33 GPM Standard Bypass Compact Brass Rotary Vane Pump
Fluid-o-Tech PA0401ANCNN0000 Rotary Vane Pump
The Fluid-o-Tech PA0401ANCNN0000 is a precision-engineered, positive displacement rotary vane pump designed for high-performance fluid transfer in industrial and commercial applications. As a cornerstone of the Fluid-o-Tech PO/PA 70-400 series, this pump features a robust lead-free brass housing and a stainless steel (AISI 303) rotor, ensuring durability and corrosion resistance. The internal pumping chamber is constructed from high-density carbon graphite, which provides a self-lubricating, low-friction wear surface that facilitates smooth, consistent liquid delivery. This advanced internal architecture is specifically engineered to maintain structural integrity under continuous-duty cycles, making it the industry standard for reverse osmosis (RO) systems, post-mix beverage dispensing, and specialized industrial water treatment circuits.
Engineered to prioritize operational reliability and efficiency, the PA0401ANCNN0000 delivers a nominal flow rate of approximately 140 GPH (gallons per hour) at standard operating speeds. It includes a factory-integrated relief valve (bypass) that protects the hydraulic system from over-pressurization and allows for fine-tuned pressure control. The pump utilizes a standard carbonator clamp (V-band) mounting configuration, enabling direct, secure coupling to NEMA 48Y or 56C electric motors. With its 3/8" NPT(F) inlet and outlet ports and optimized flow dynamics, the PA0401ANCNN0000 provides the steady, non-pulsating pressure required for mission-critical liquid handling.
| SPECIFICATION | DETAILS |
| Model Number | PA0401ANCNN0000 |
| Manufacturer | Fluid-o-Tech |
| Pump Type | Rotary Vane Pump |
| Housing Material | Lead-Free Brass |
| Rotor Material | AISI 303 Stainless Steel |
| Chamber / Vane Material | Carbon Graphite |
| Max Flow Rate | 140 GPH (at 1725 RPM) |
| Max Operating Pressure | 260 PSI (18 Bar) |
| Max Pump Speed | 1725 RPM |
| Port Size (In/Out) | 3/8" NPT(F) |
| Mounting Type | Carbonator Clamp (V-Band) |
| Bypass Valve | Yes (Integrated) |
| Max Liquid Temp | 158°F (70°C) |

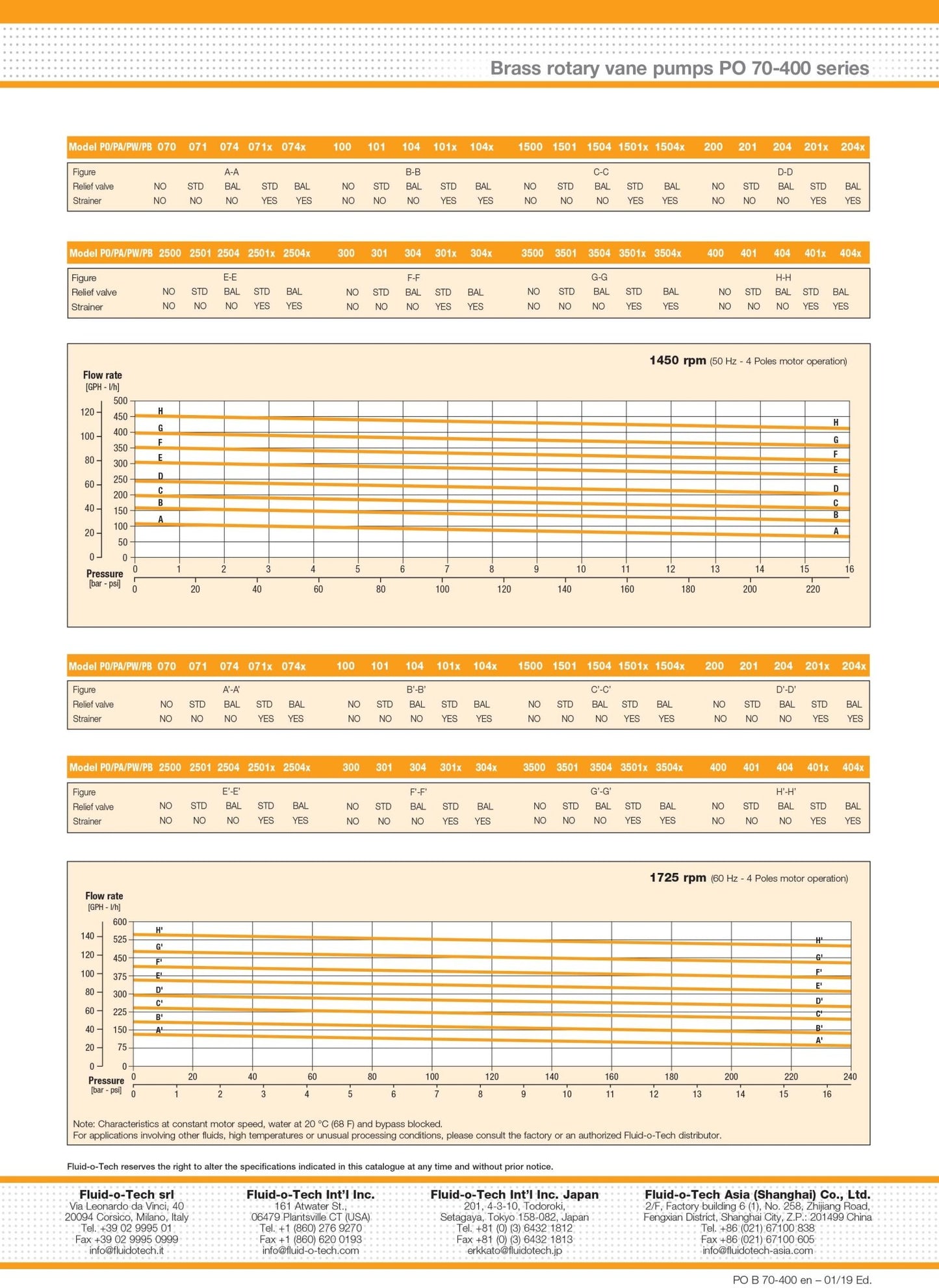

| Part # | Bypass | Mount | Body | 1450 RPM | 1725 RPM | Req. HP @ 200 PSI | ||||||
| 100 PSI | 200 PSI | 100 PSI | 200 PSI | |||||||||
| GPH | LPH | GPH | LPH | GPH | LPH | GPH | LPH | |||||
| PA0401ANCNN0000 | Yes | Clamp | Brass | 118 | 447 | 113 | 428 | 140 | 530 | 134 | 507 | 1/2 |

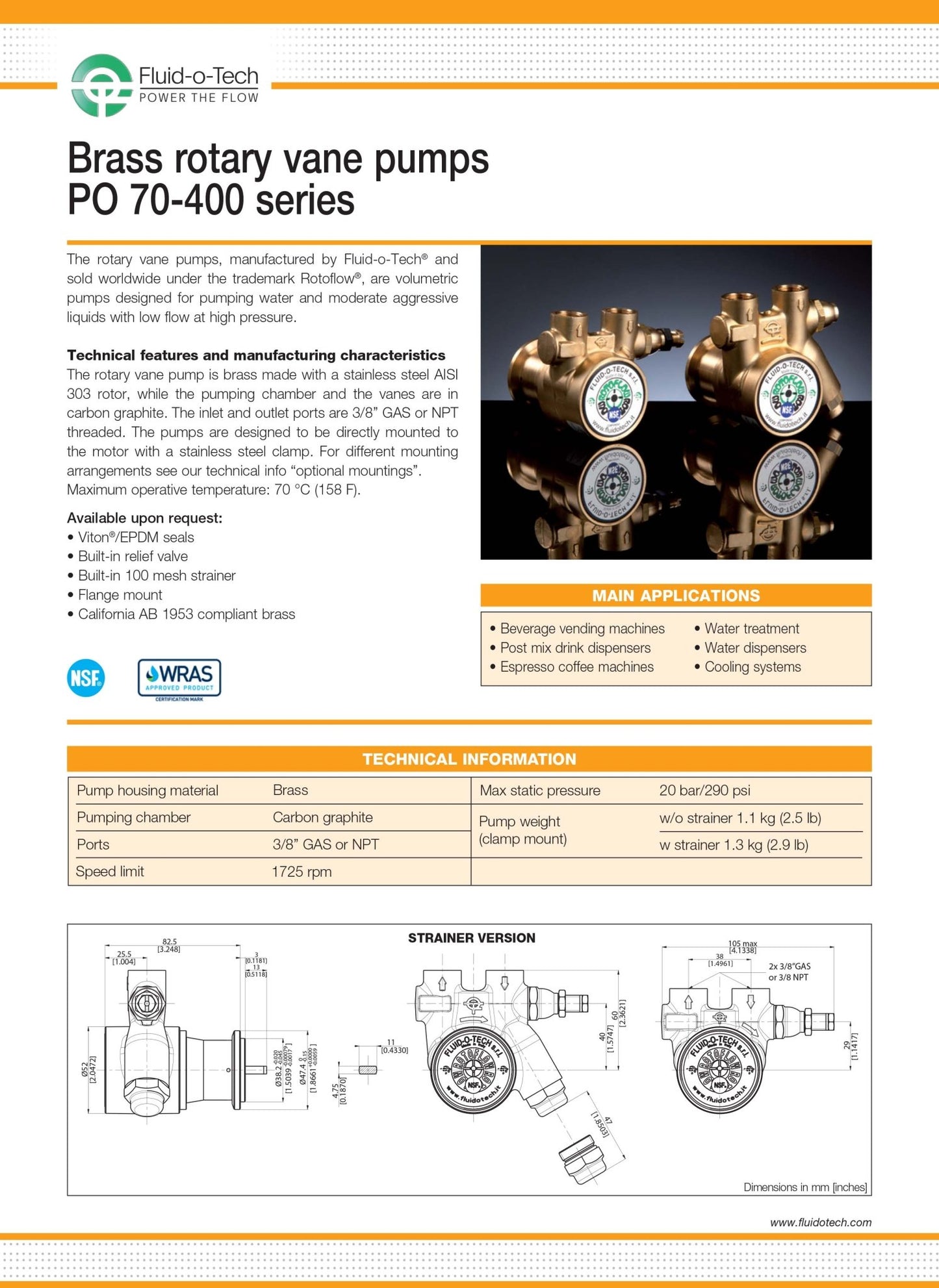

The PO 70-400 series positive displacement rotary vane pumps are available with brass or stainless steel housings with 3/8” GAS or NPT ports and internal relief valve. The nominal flow rates range between 70 and 400 l/h at 1450 rpm. Any vane pump of this series may be operated at 1725 rpm as well and will provide about 20% more capacity, with a maximum of 530 l/h. Maximum discharge pressure is 16 bar (230 psi). This series mounts directly to NEMA 48Y motors by means of a v-band clamp and to M71, M80 IEC and NEMA 56C motors by means of an adapter and relevant coupling.
