Fluid-o-Tech PA PA0600FN0DN0000 Rotary Vane Pump

Product Description

The Fluid-o-Tech PA PA0600FN0DN0000 is a robust, positive displacement rotary vane pump designed for reliable, continuous-duty water transfer and pressurization. This model is constructed with a durable, lead-free brass housing (NSF approved) and a carbon graphite pumping chamber, ensuring long service life and high-quality performance in potable water applications. The pump delivers a maximum flow of approximately 190 Gallons Per Hour (GPH) at a maximum operating pressure up to 230 PSI. It features a Flange Mount configuration designed for direct coupling to NEMA 48Y or IEC motors. Because it is a positive displacement design, it offers a pulsation-free, continuous flow. The PA0600FN0DN0000 is an industry standard for commercial Reverse Osmosis (RO) booster systems, carbonator units, espresso machines, and high-volume water dispensers.

Specifications Table

Characteristic	Specification	Units / Notes
Model Number	PA0600FN0DN0000	Rotary Vane Pump
Pump Type	Positive Displacement	Rotoflow® Rotary Vane
Nominal Flow Rate	190 (3.2)	GPH (GPM) @ 200 PSI
Max Discharge Pressure	230 (16)	PSI (Bar)
Max Static Pressure	290 (20)	PSI (Bar)
Max Speed	1,725	Revolutions Per Minute (RPM)
Housing Material	Lead-Free Brass	NSF Listed
Port Connections	$1/2$ inch NPT Female	$1/2'' \text{ NPTF}$
Mounting	Flange Mount	Designed for NEMA 48Y/IEC Motors
Relief Valve	Not Included (No Bypass)	Standard PA0600FN0DN0000 model

Part #

Bypass

Mount

Body

1450 RPM

1725 RPM

Req. HP @ 200 PSI

100 PSI

200 PSI

100 PSI

200 PSI

GPH

LPH

GPH

LPH

GPH

LPH

GPH

LPH

PA0600FN0DN0000

Flange

Brass

165

625

160

606

196

742

190

719

3/4

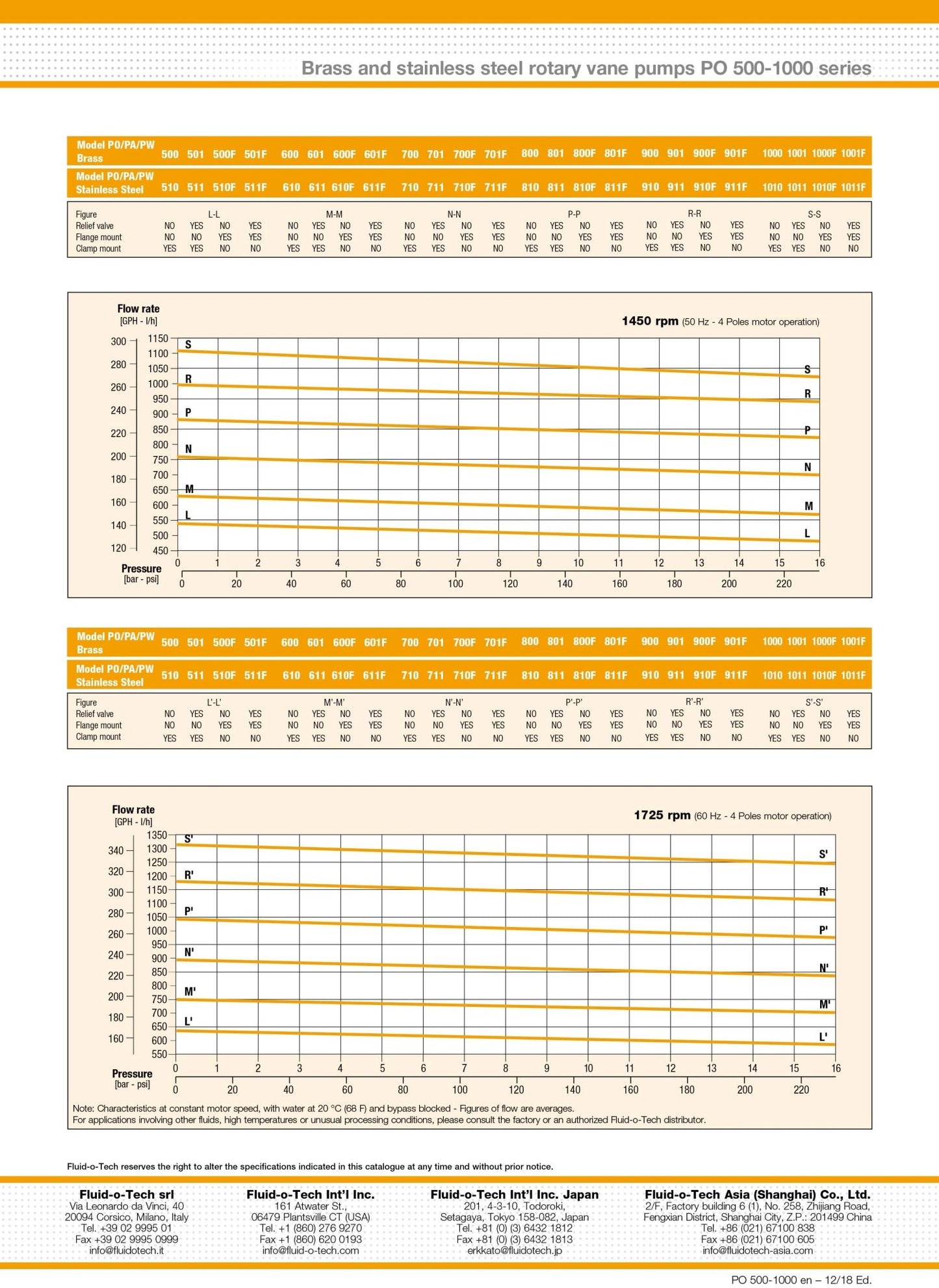

TO VIEW DATA SHEETS LARGER RIGHT CLICK SHEET AND SELECT OPEN IMAGE IN NEW TAB

The PO 500-1000 series positive displacement rotary vane pumps are available with brass or stainless steel housing with ½” GAS or NPT ports and internal relief valve. The nominal flow rates range between 500 and 1000 l/h at 1450 rpm. Any vane pumps of this series may be operated at 1725 rpm as well and will provide about 20% more capacity, with a maximum of 320 GPH. Maximum discharge pressure is 230 psi (16 bar). This series mounts directly to widely available NEMA 48Y motor by means of a v-band clamp and to M71, M80 IEC and NEMA 56C motors by means of an adapter and relevant coupling.
