PV-2514SW HCTI

PV-2514SW: HCTI's American-Made Fiberglass Pressure Vessel (2.5" x 14")

The PV-2514SW is a fiberglass reinforced plastic (FRP) pressure vessel proudly designed and manufactured in the United States by HCTI (Hydrocomponents & Technologies, Inc.). As part of HCTI's own domestically produced vessel line, the PV-2514SW is built in-house, maintaining direct control over the materials, construction, and quality of every vessel that carries the PV-2514SW name. Sized to house a single 2.5" x 14" membrane element, the PV-2514SW has become a popular choice among DIY watermaker builders, with mentions across online forums, blogs, and video tutorials from the desalination and marine community.

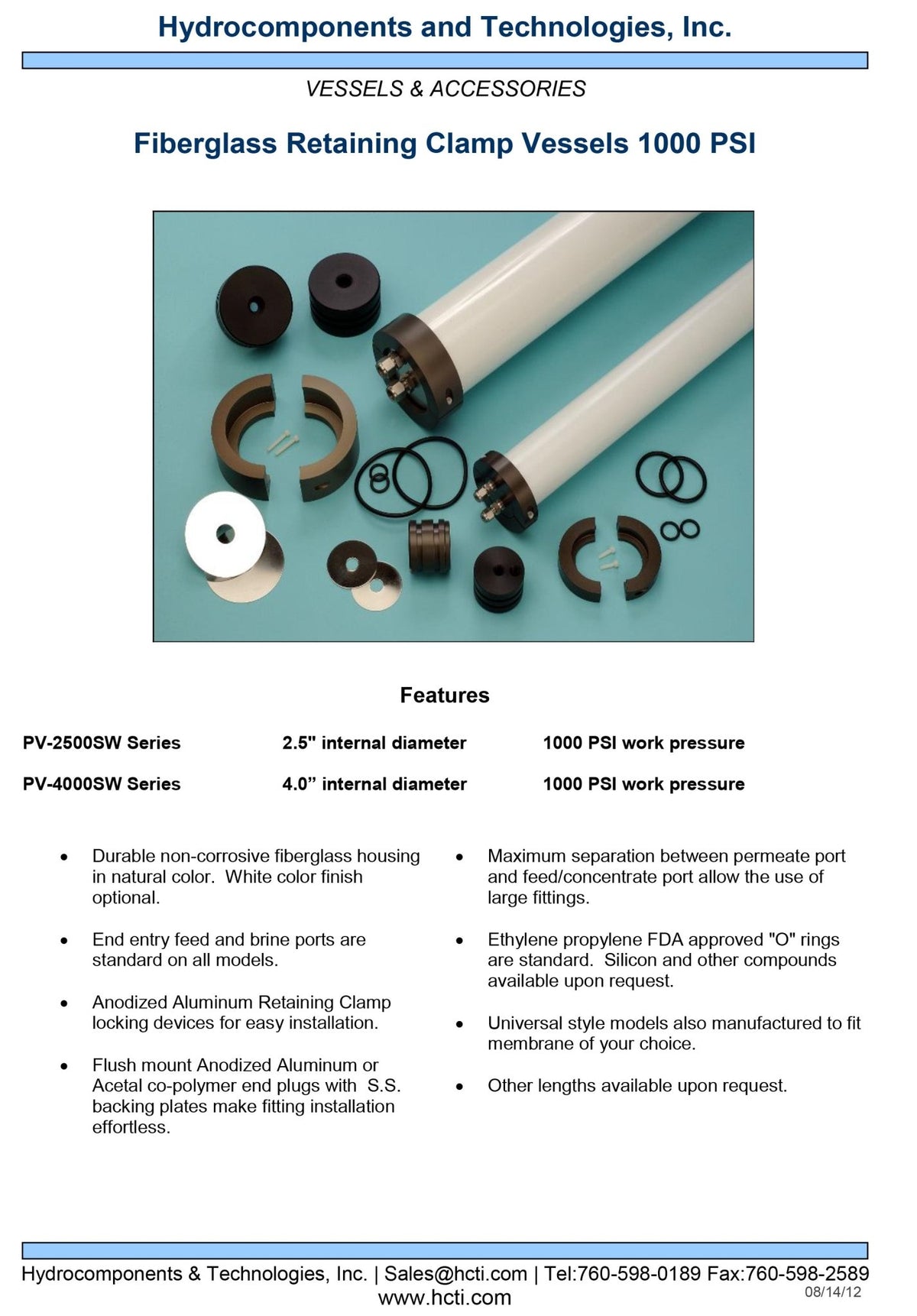

Constructed with a durable, non-corrosive fiberglass housing in natural color (white finish available on request), the PV-2514SW features end-entry feed and brine ports standard on every unit. An anodized aluminum retaining clamp locking device makes installation straightforward, while flush-mount anodized aluminum or acetal co-polymer end plugs, backed by stainless steel backing plates, keep fitting installation simple and effortless. FDA-approved ethylene propylene (EPDM) O-rings are standard, with silicone and other compound options available on request for specialized applications.

Rated for 1,000 PSI working pressure, the PV-2514SW is built with maximum separation between the permeate port and the feed/concentrate port, allowing the use of larger fittings without crowding. At a compact 17" overall length, it's well suited for space-constrained watermaker and small-scale desalination installations where a single 2.5" x 14" element is the right fit.

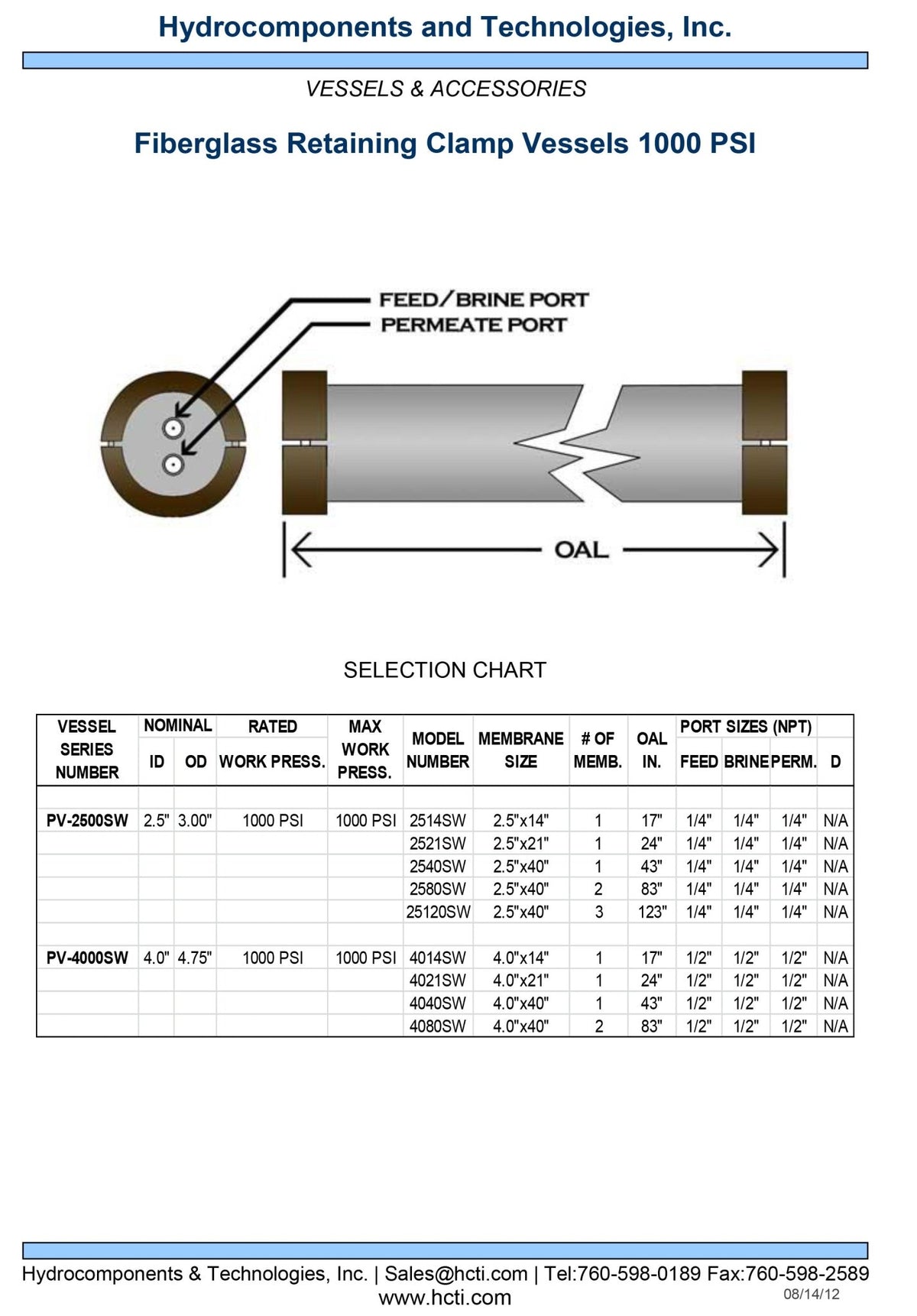

Specification Table
