DuPont
SW30-6040 FilmTec™ DOW / DuPont Seawater Membranes 800 PSI 2,100 GPD 6 x 40 inch
Couldn't load pickup availability
FREE SHIPPING to The Contiguous United States! (Excluding Alaska & Hawaii)
- Found a Better Price? Contact Us, We'll See if We Can Get You a Better Deal!
- Original Authentic Genuine Part!
- For Quantity Discounts Contact Us for a Quote!
- Customers Outside The Contiguous United States, Please Contact Us for a Quote!
- Call: 1 (760) 598-0189
- Email: hctivista@gmail.com
Product Description: FilmTec™ SW30-6040 Seawater RO Element
The FilmTec™ SW30-6040 is a premier seawater reverse osmosis (SWRO) membrane element designed for high productivity and excellent salt rejection in medium-sized commercial and marine desalination systems.
|
Characteristic |
Measurement |
Units / Notes |
|
Model |
SW30-6040 |
- |
|
Membrane Type |
Polyamide Thin-Film Composite |
- |
|
Element Dimensions (Nominal) |
6.0 x 40 |
inches |
|
Active Area |
80.0 (7.4) |
sq ft (sq m) |
|
Permeate Flow Rate |
2,100 (7.9) |
GPD (m3/day). +/- 20% flow variance. |
|
Stabilized Salt Rejection |
99.0 |
% (Minimum) |
|
Applied Pressure (Test) |
800 (55) |
psi (bar) |
|
Max Operating Pressure |
1,000 (69) |
psi (bar) |
|
Max Operating Temperature |
113 (45) |
F (C). 95 F (35 C) above pH 10. |
|
Continuous pH Range |
2 - 11 |
- |
|
Short-Term Cleaning pH |
1 - 13 |
(30 min) |
|
Max Feed Flow Rate |
28 (6.4) |
GPM (m3/hr) |
|
Max Silt Density Index (SDI) |
5 |
- |
|
Free Chlorine Tolerance |
< 0.1 |
ppm (Requires pretreatment removal) |
Note on Test Conditions: Permeate flow rate and salt rejection are based on: 32,000 ppm NaCl, Applied Pressure (800 psi/55 bar), (), pH 8, and recovery.

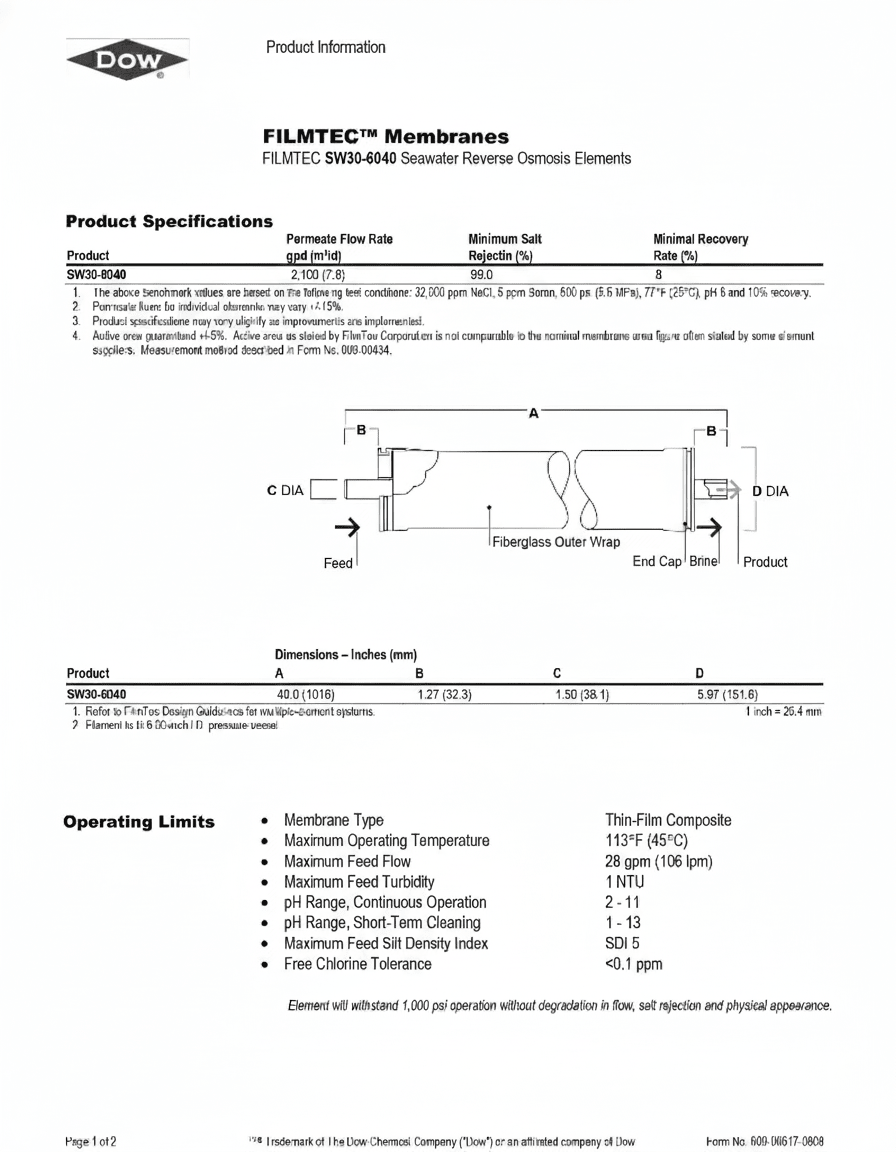

To View Spec Sheet Larger, Right Click Sheet and Select Open Image in New Tab
