SW30HR-380 FilmTec DOW / DuPont Desalination Machine Watermaker Membranes 6,500 GPD at 800 PSI

SW30HR-380 FilmTec DOW / DuPont Desalination Machine Watermaker Membranes 6,500 GPD at 800 PSI

$888.13 USD
$888.13 USD
Sale Sold out
Shipping calculated at checkout.

SW30HR-380 FilmTec DOW / DuPont Desalination Machine Watermaker Membranes 6,500 GPD at 800 PSI

  • Financing Options Available at Checkout via Shop Pay & Paypal!

  • For International Shipments Contact Us for a Quote!

  • Call: 1 (760) 598-0189

  • Email: hctivista@gmail.com



PLEASE REFERENCE DATA SHEETS & TABLE BELOW



DuPont FilmTec SW30HR-380 Seawater RO Membrane



The DuPont FilmTec SW30HR-380 is a premium-grade Seawater Reverse Osmosis (RO) Element designed for medium-to-large desalination systems. Engineered for high performance, this model features a specialized Polyamide Thin-Film Composite membrane that delivers exceptional salt rejection, making it a critical component for producing potable water from high-salinity marine sources. Its "HR" (High Rejection) designation signifies its ability to produce high-quality permeate while maximizing system efficiency.

Built for durability in demanding marine environments, the SW30HR-380 features a robust fiberglass outer shell and a high active area of 380 square feet, which allows for a substantial production capacity of 6,500 Gallons Per Day (GPD). It is designed to withstand high operating pressures and offers superior resistance to fouling, ensuring long-term stable performance and reduced cleaning frequency. This element is widely used in land-based desalination plants and marine watermakers where reliability and water purity are paramount.

SPECIFICATION DETAILS
Model Number SW30HR-380
Manufacturer DuPont (FilmTec)
Element Type Seawater Reverse Osmosis
Membrane Material Polyamide Thin-Film Composite
Outer Wrap Hard Fiberglass Shell
Permeate Flow Rate 6,500 GPD (24.6 m³/d)
Stabilized Salt Rejection 99.7%
Applied Pressure (Test) 800 psi (55 bar)
Max Operating Pressure 1,000 psi (69 bar)
Active Area 380 ft² (35 m²)
Feed Spacer Thickness 28 mil
Max Liquid Temp 113°F (45°C)
Dimensions 8.0" x 40"

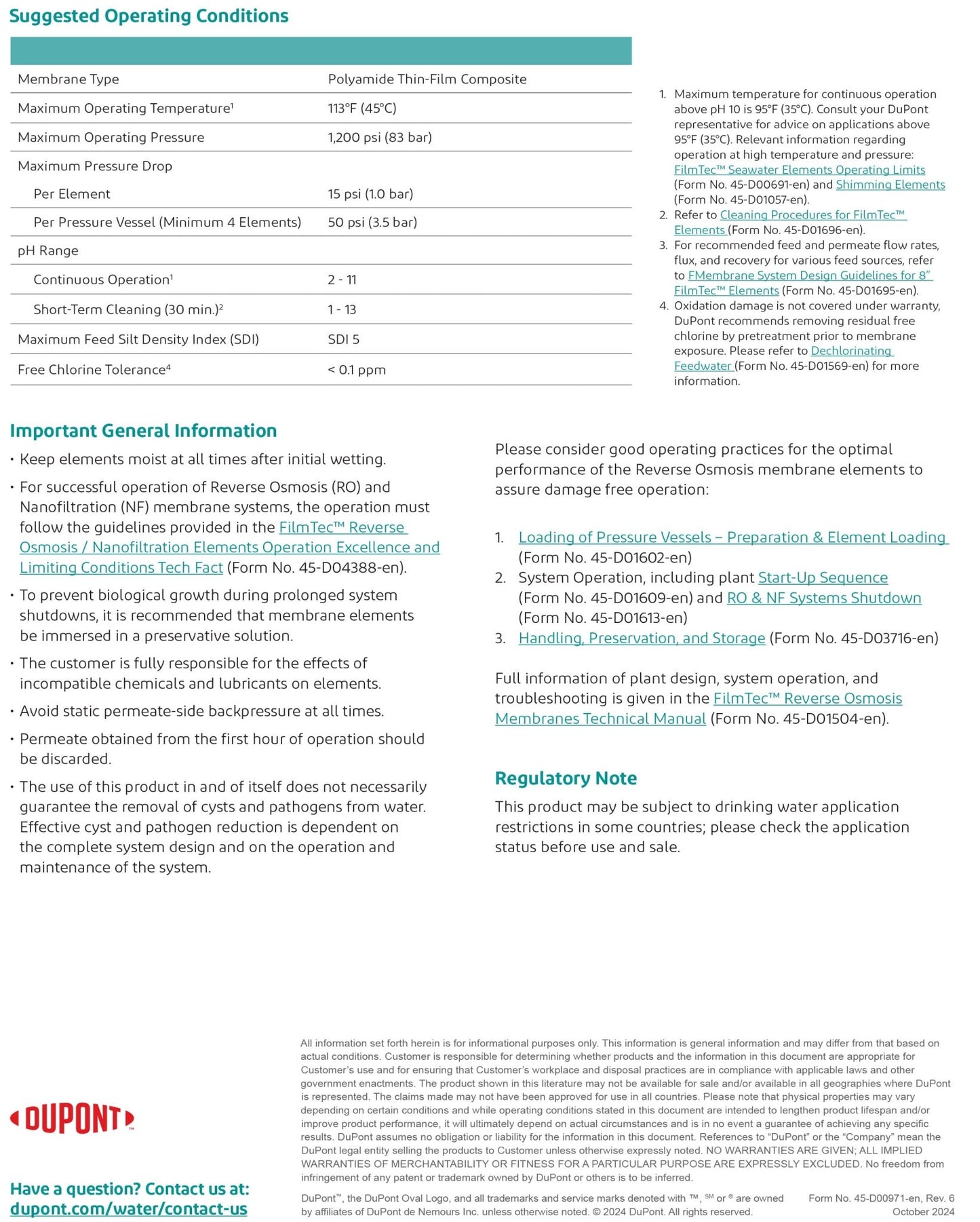

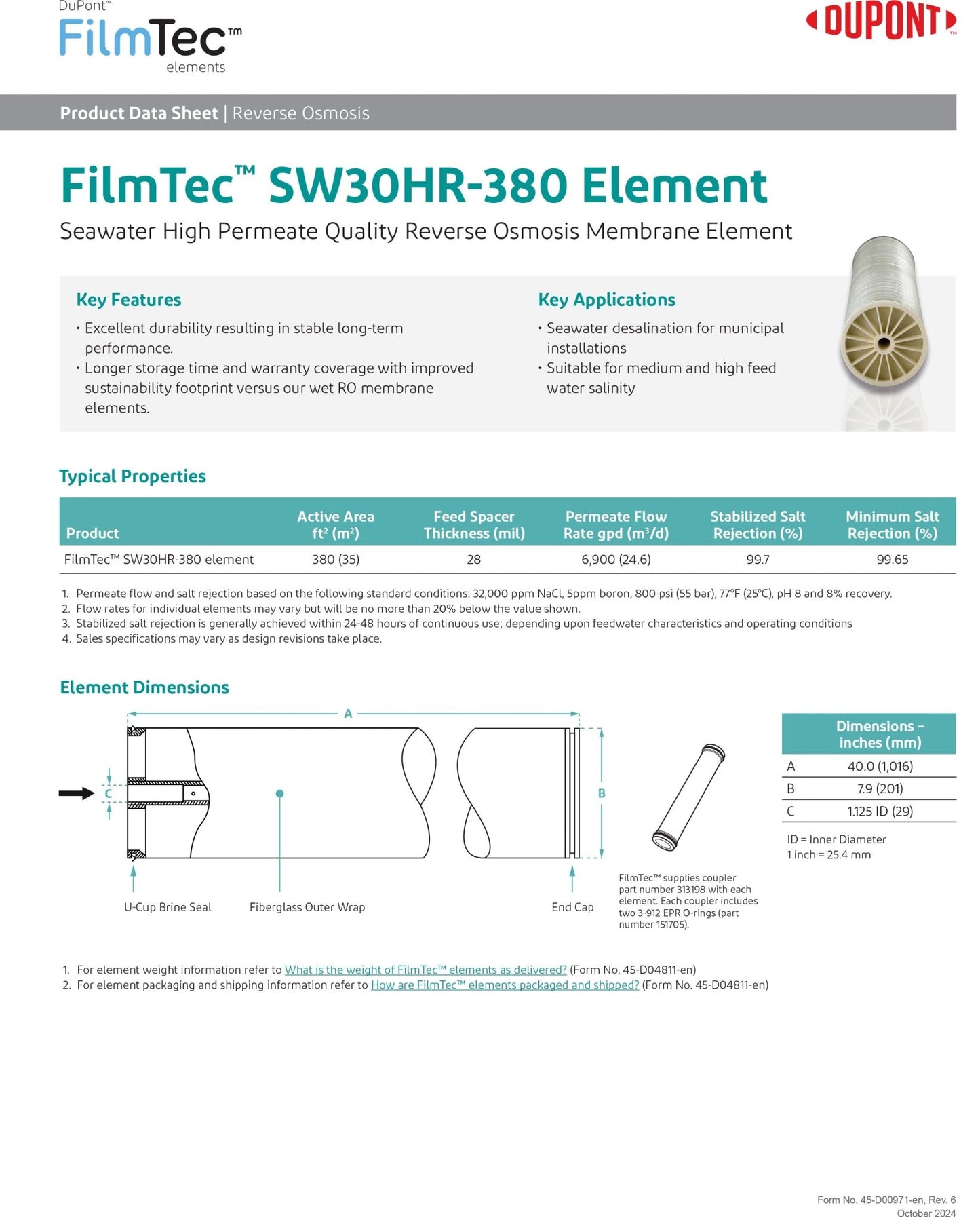

TO VIEW DATA SHEETS LARGER RIGHT CLICK SHEET AND SELECT OPEN IMAGE IN NEW TAB
