Hydranautics SWC5 MAX Seawater RO Membrane



The Hydranautics SWC5 MAX is a high-productivity Seawater Reverse Osmosis Element engineered to deliver an optimal balance of exceptional salt rejection and maximized permeate flow. Built with an advanced composite polyamide polymer, this 8-inch commercial membrane is specifically designed for the rigorous demands of large-scale seawater desalination plants and high-salinity brackish water applications. By significantly reducing total dissolved solids (TDS) and effectively rejecting boron and other critical contaminants, it ensures the consistent production of high-purity potable water for municipal, marine, and industrial use.

Designed to maximize system efficiency and lower overall capital costs, the "MAX" designation indicates that this element features a massive 440 square foot active surface area. This high-surface-area construction utilizes a durable 28-mil feed spacer, allowing for maximum water production per pressure vessel without significantly increasing the system's overall footprint. Operating at a standard test pressure of 800 PSI, the SWC5 MAX reliably produces an impressive 9,900 Gallons Per Day (GPD) while maintaining an industry-leading nominal salt rejection of 99.8%. This combination of high flux and premium rejection makes it an incredibly cost-effective solution for energy-intensive desalination processes.

SPECIFICATION DETAILS
Model Number SWC5 MAX
Manufacturer Hydranautics (Nitto)
Membrane Type Seawater / High Surface Area
Material Composite Polyamide
Permeate Flow Rate 9,900 GPD (37.5 m³/d)
Nominal Salt Rejection 99.8%
Minimum Salt Rejection 99.7%
Active Surface Area 440 ft² (40.9 m²)
Feed Spacer Thickness 28 mil
Test Pressure 800 PSI (5.5 MPa)
Max Operating Pressure 1200 PSI (8.27 MPa)
Dimensions 8.0" Diameter x 40" Length
Max Operating Temp 113°F (45°C)



8 Inch Elements
Model # Diameter x Length GPD Rejection Typical Pressure
SWC5 MAX 8.0 x 40 9,900 99.80% 800

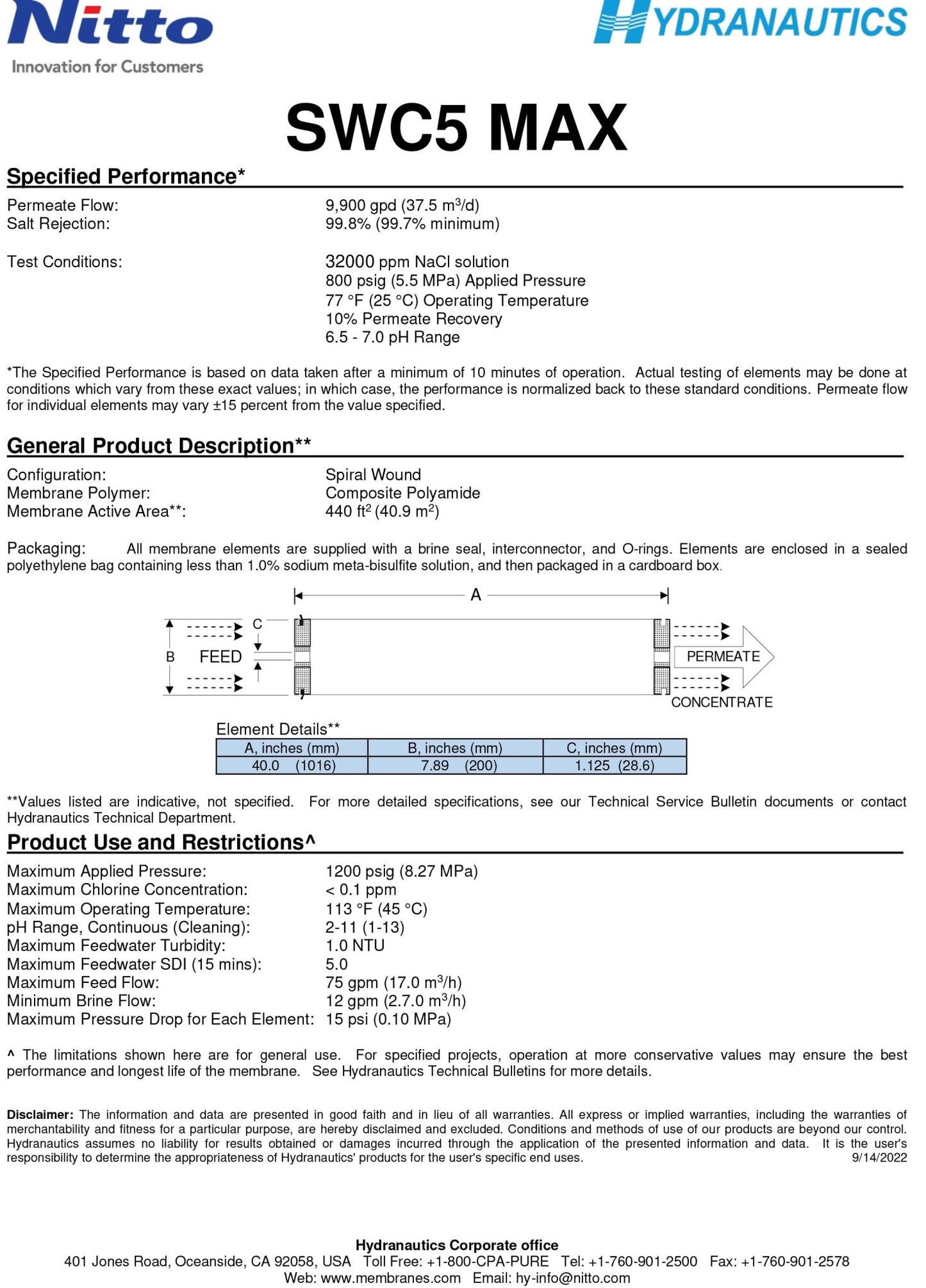

To View Data Sheet Larger Right Click Sheet and Select Open Image in New Tab
