Toray TM710D RO Membrane (4" x 40" / 2600 GPD)
The Toray TM710D is a high-performance, high-rejection Brackish Water Reverse Osmosis (BWRO) Membrane Element designed for commercial and light industrial applications. This industry-standard 4-inch by 40-inch size (4040) element is ideal for treating feed water with medium salinity (brackish water), municipal water, and process water.
The membrane utilizes Toray's state-of-the-art Cross-Linked Fully Aromatic Polyamide Composite material, known for its enhanced chemical tolerance and superior durability. It boasts a nominal stabilized salt rejection rate of 99.80%, ensuring exceptional water purity by removing dissolved solids, organics, and particulates.
Operating efficiently at a low applied pressure of 225 PSI, the TM710D delivers a high permeate flow rate of up to 2,600 Gallons Per Day (GPD). With a maximum operating pressure of 600 PSI, it offers reliable performance and a long service life while reducing overall energy costs.

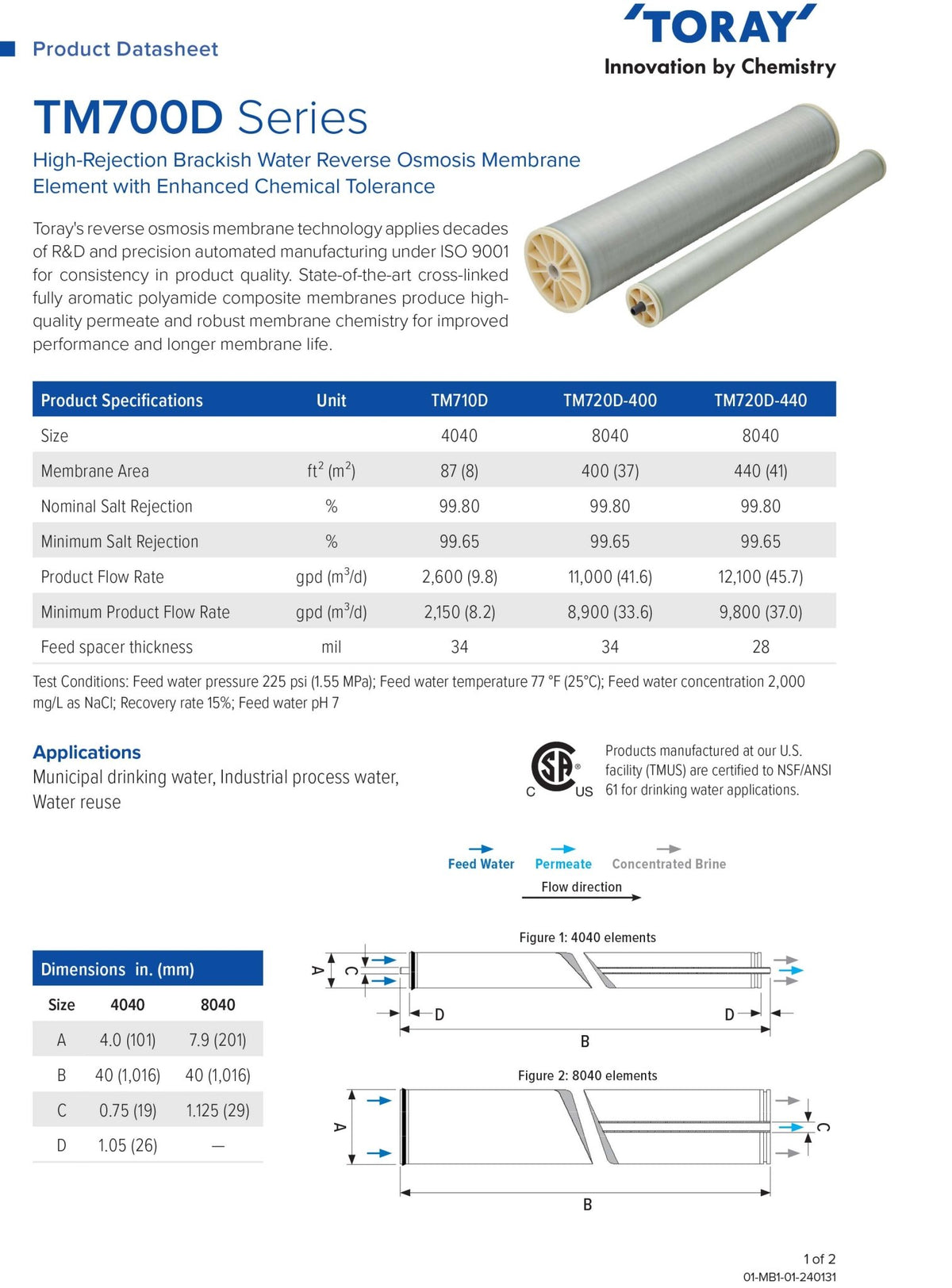

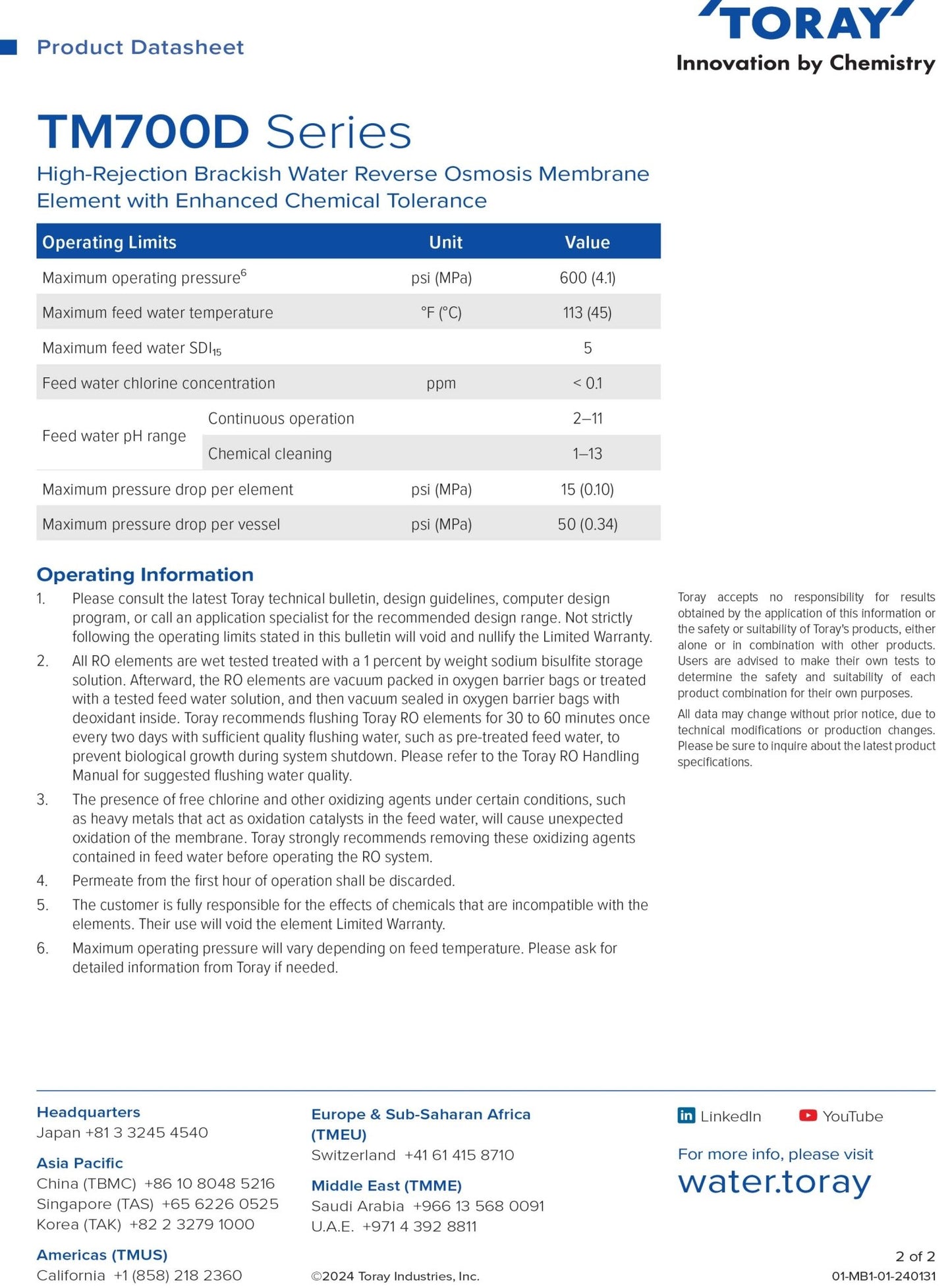

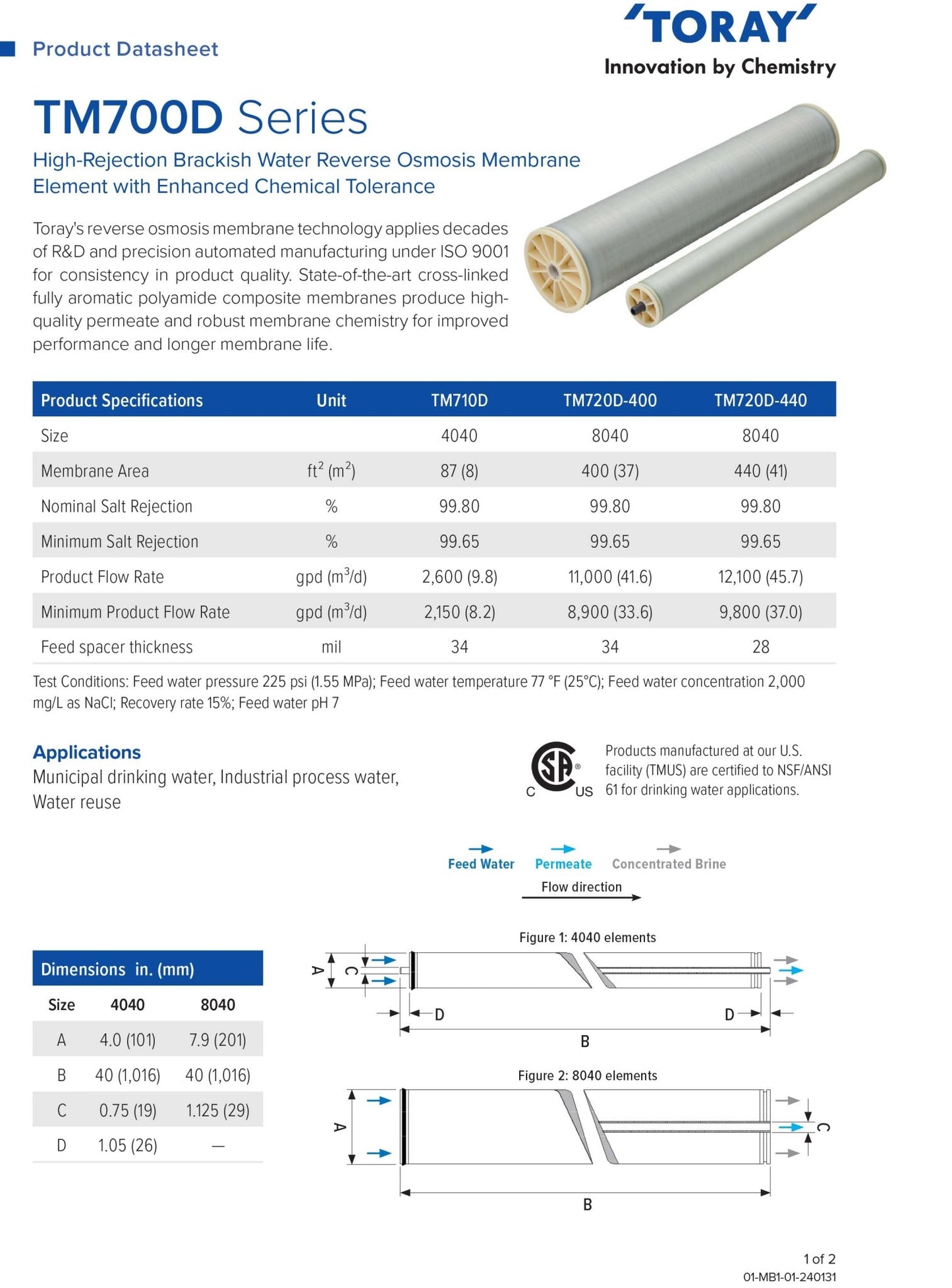

Specifications Table
|
Characteristic |
Specification |
Units / Notes |
|
Manufacturer |
Toray |
- |
|
Model Number |
TM710D (TM700D Series) |
Brackish Water RO Element |
|
Dimensions |
4" x 40" |
Standard Commercial Size |
|
Membrane Type |
Cross-Linked Aromatic Polyamide |
Composite Material |
|
Nominal Permeate Flow |
2,600 (9.8) |
GPD (m³/d) |
|
Nominal Salt Rejection |
99.80 |
Percent |
|
Minimum Salt Rejection |
99.65 |
Percent |
|
Applied Test Pressure |
225 (1.55) |
PSI (MPa) |
|
Max Operating Pressure |
600 (4.1) |
PSI (MPa) |
|
Max Feed Water Temp |
113 (45) |
Deg. F (Deg. C) |
|
Active Area |
87 (8) |
sq. ft. (m2) |
|
Continuous pH Range |
2 - 11 |
- |
