TM720D-440 'TORAY' 12,100 GPD at 225 PSI RO Membranes Brackish Water
TM720D-440 'TORAY' 12,100 GPD at 225 PSI RO Membranes Brackish Water
TM720D-440 'TORAY' 12,100 GPD at 225 PSI RO Membranes Brackish Water

TM720D-440 'TORAY' 12,100 GPD at 225 PSI RO Membranes Brackish Water

Hydrocomponents & Technologies Inc.

Description

TM720D-440 'TORAY' 12,100 GPD at 225 PSI RO Membranes Brackish Water. Highest rejection in the marketplace, as well as high flow.

  • Financing Options Available at Checkout via Shop Pay & Paypal!



PLEASE REFERENCE DATA SHEETS & TABLE BELOW



🌊 Toray TM720D-440 Brackish Water RO Membrane



The Toray TM720D-440 is a high-performance Brackish Water Reverse Osmosis (BWRO) Element engineered for large-scale municipal and industrial water treatment applications. Part of the renowned TM700D series, this element is specifically designed for treating water sources with medium salinity, ranging from 2,000 to 10,000 ppm. It utilizes an advanced cross-linked fully aromatic polyamide composite membrane to deliver the highest rejection rates available in the marketplace, ensuring superior permeate quality even in demanding conditions.

With an expansive active surface area of 440 square feet, the TM720D-440 maximizes productivity within a standard 8-inch diameter footprint. This increased surface area, combined with a 28-mil feed spacer, allows for high permeate flow rates of 12,100 GPD while maintaining a stable salt rejection of 99.8%. The element's design is optimized for high durability and enhanced chemical resistance, making it a reliable choice for operators looking for long service life and consistent performance in brackish water desalination.

SPECIFICATION DETAILS
Model Number TM720D-440
Manufacturer Toray
Membrane Type Brackish Water (BWRO)
Material Aromatic Polyamide Composite
Permeate Flow Rate 12,100 GPD (45.7 m³/d)
Nominal Salt Rejection 99.8%
Minimum Salt Rejection 99.65%
Active Surface Area 440 ft² (41 m²)
Feed Spacer Thickness 28 mil
Standard Test Pressure 225 PSI (1.55 MPa)
Max Operating Pressure 600 PSI (4.1 MPa)
Max Operating Temp 113°F (45°C)
Dimensions 8.0" Diameter x 40" Length
pH Range (Continuous) 2 - 11
Max Feed SDI15 5.0

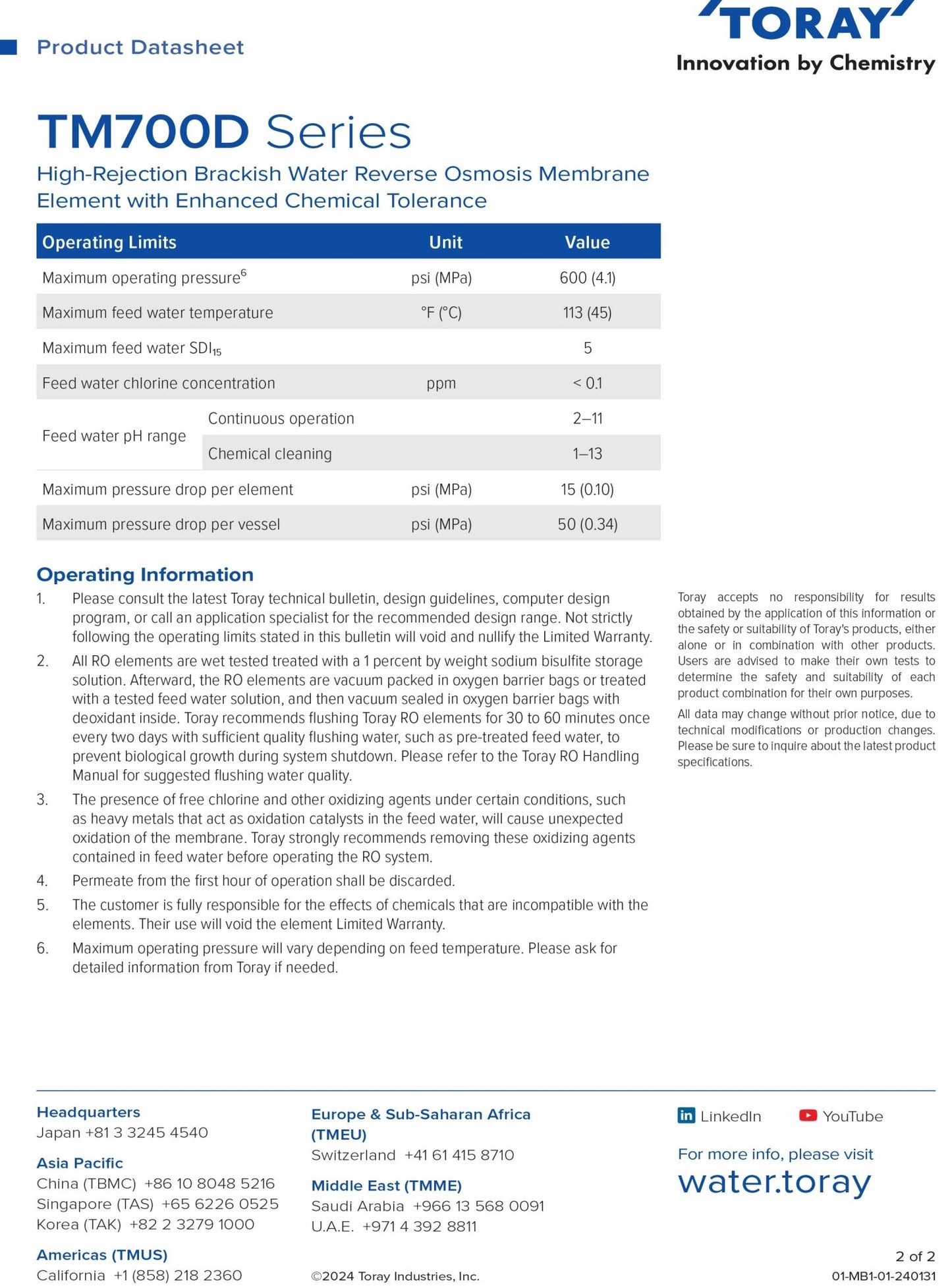

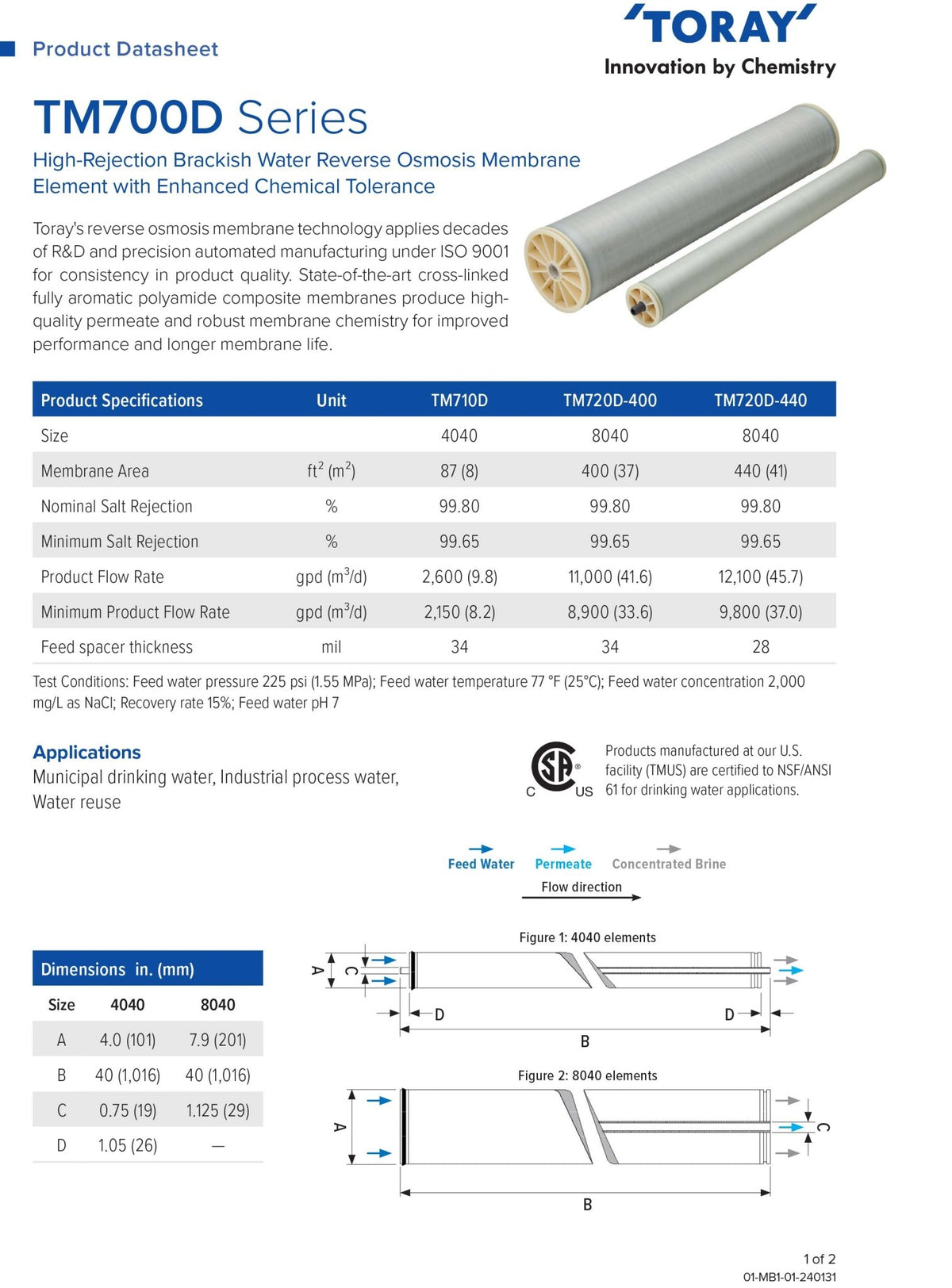

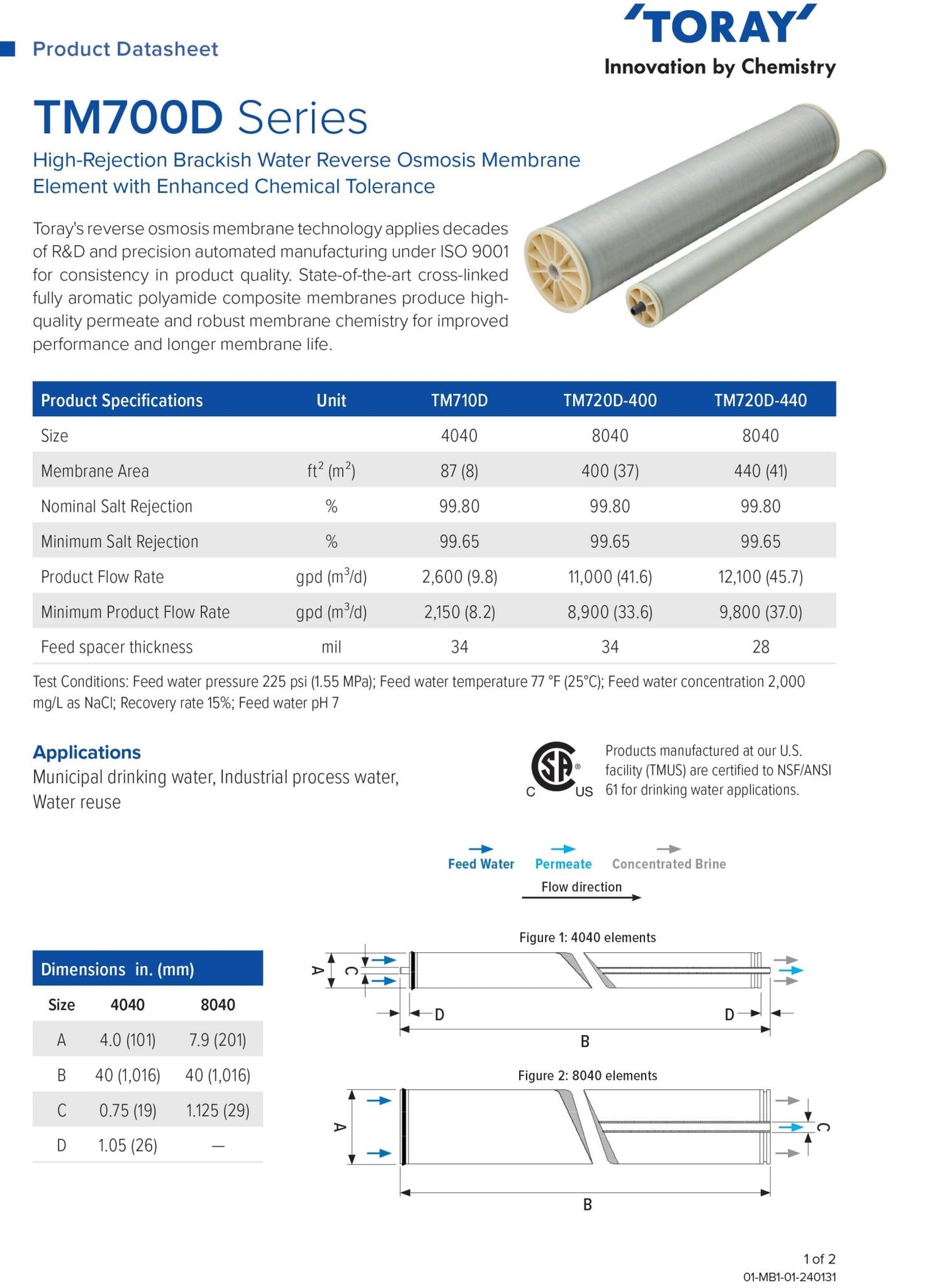

To View Data Sheet Larger Right Click Sheet and Select Open Image in New Tab



8.0 brackish water, inch high rejection, low energy, enhanced chemical resistance
Model # Flow Rejection Feed Spacer Rated pressure
TM720D-440 12100 99.80% 28 225 psi(1.55MPa)
