TM810V Toray 1,900 GPD at 800 PSI 4 x 40 inch Desalination Machine Watermaker Seawater Membranes
TM810V Toray 1,900 GPD at 800 PSI 4 x 40 inch Desalination Machine Watermaker Seawater Membranes
Couldn't load pickup availability
TM810V Toray 1,900 GPD at 800 PSI 4 x 40 inch Desalination Machine Watermaker Seawater Membranes
Highest rejection in the marketplace. Stable performance and reliability.
-
Financing Options Available at Checkout via Shop Pay & Paypal!
-
For International Shipments Contact Us for a Quote!
PLEASE REFERENCE DATA SHEETS AND TABLE BELOW
Toray TM810V Sea Water RO Membrane Element (4040)
Product Description
The Toray TM810V is a high-performance Sea Water Reverse Osmosis (SWRO) membrane element designed for medium to high-salinity water sources (above 10,000 ppm TDS). This standard element utilizes Toray's state-of-the-art cross-linked fully aromatic polyamide composite chemistry, delivering a high nominal salt rejection rate of .
The TM810V is engineered for low-energy operation, achieving a nominal flow rate of 1,900 Gallons Per Day (GPD) at a standard test pressure of . Its robust design and high flux capabilities make it an ideal choice for commercial desalination systems, industrial process water purification, shipboard watermakers, and high-quality potable water applications requiring effective boron rejection. The element is rated for a maximum operating pressure up to .
Specifications Table
| Characteristic | Specification | Units / Notes |
| Model | TM810V (4040 Size) | Sea Water RO (SWRO) |
| Manufacturer | TORAY | - |
| Membrane Type | Polyamide Composite | Cross-Linked Fully Aromatic |
| Element Dimensions | inches (Diameter x Length) | |
| Active Area | 87 (8.0) | sq ft (sq m) |
| Nominal Permeate Flow | 1,900 (7.2) | GPD (m³/day) |
| Nominal Salt Rejection | ||
| Minimum Salt Rejection | ||
| Applied Pressure (Test) | 800 (5.52) | PSI (MPa) |
| Max Operating Pressure | 1,200 (8.3) | PSI (MPa) |
| Max Feed Water Temp | () | - |

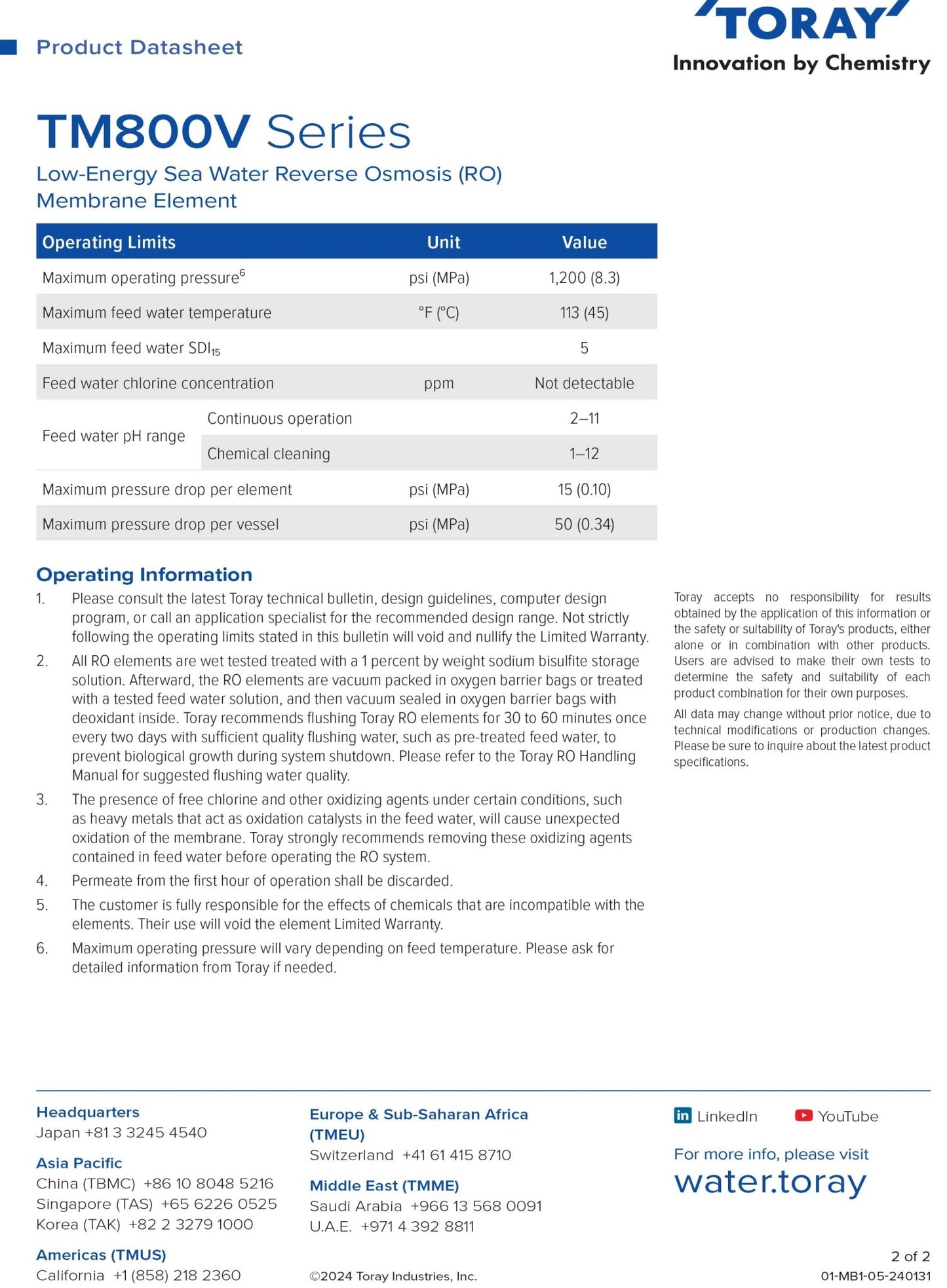

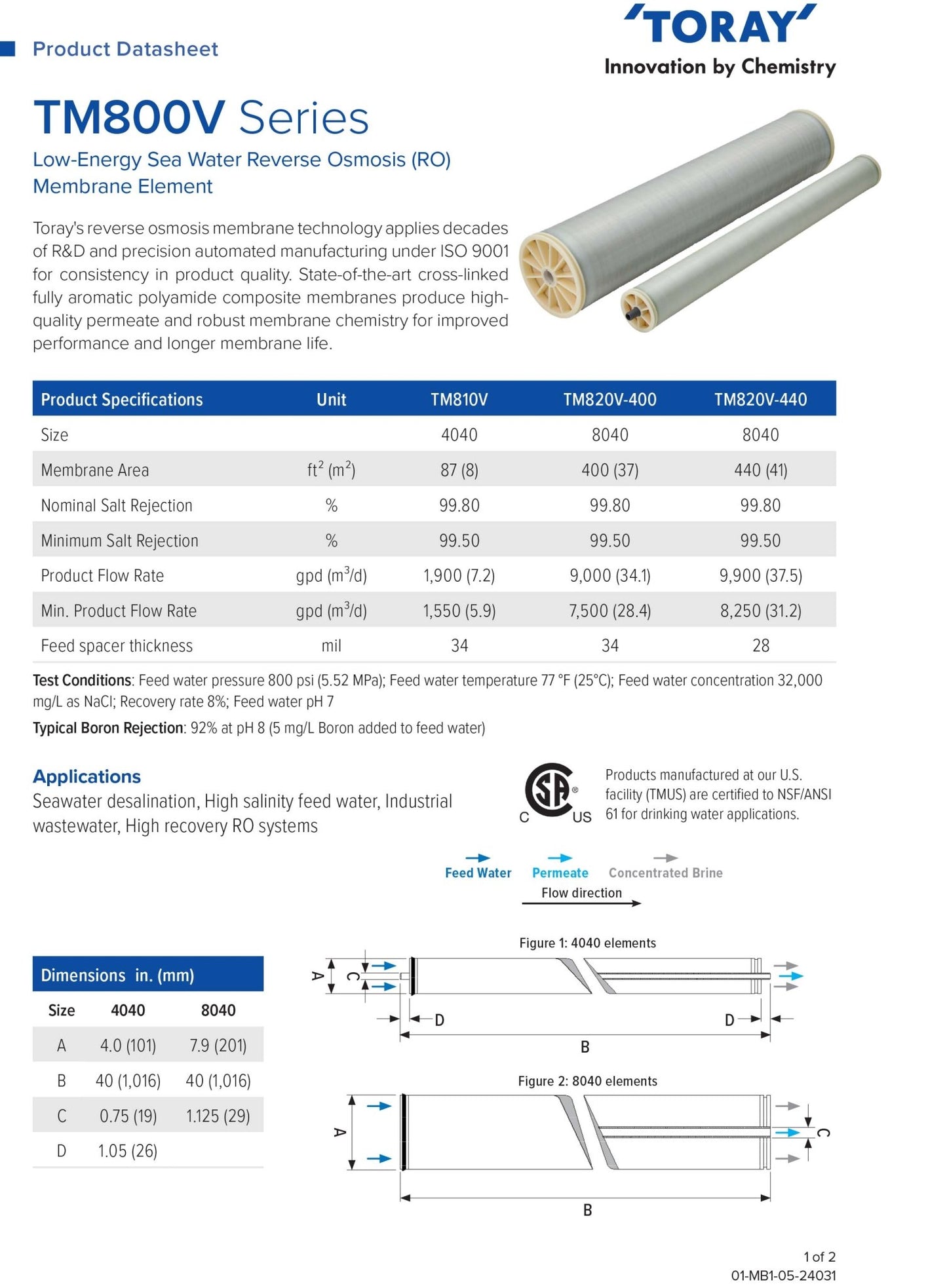

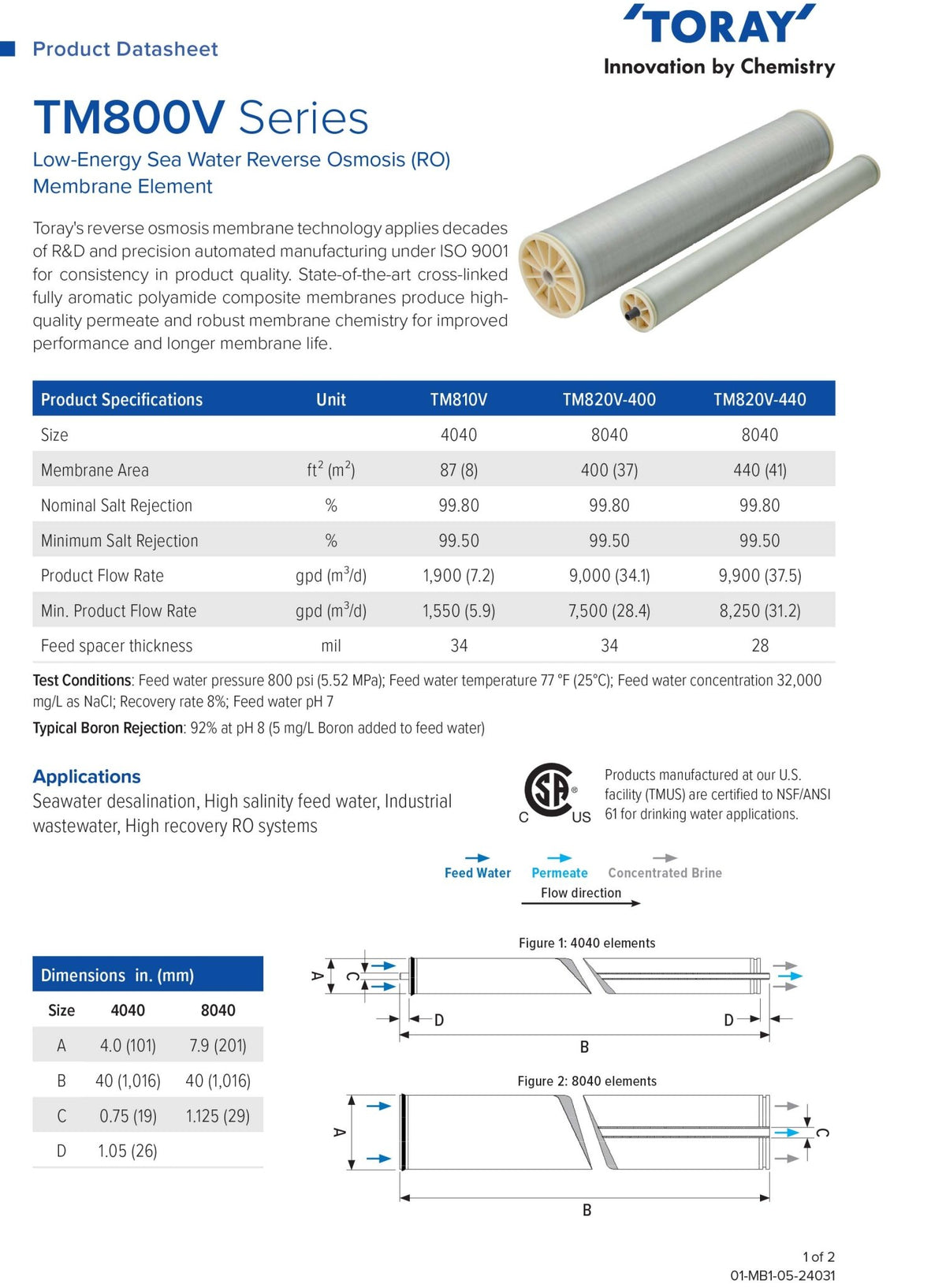

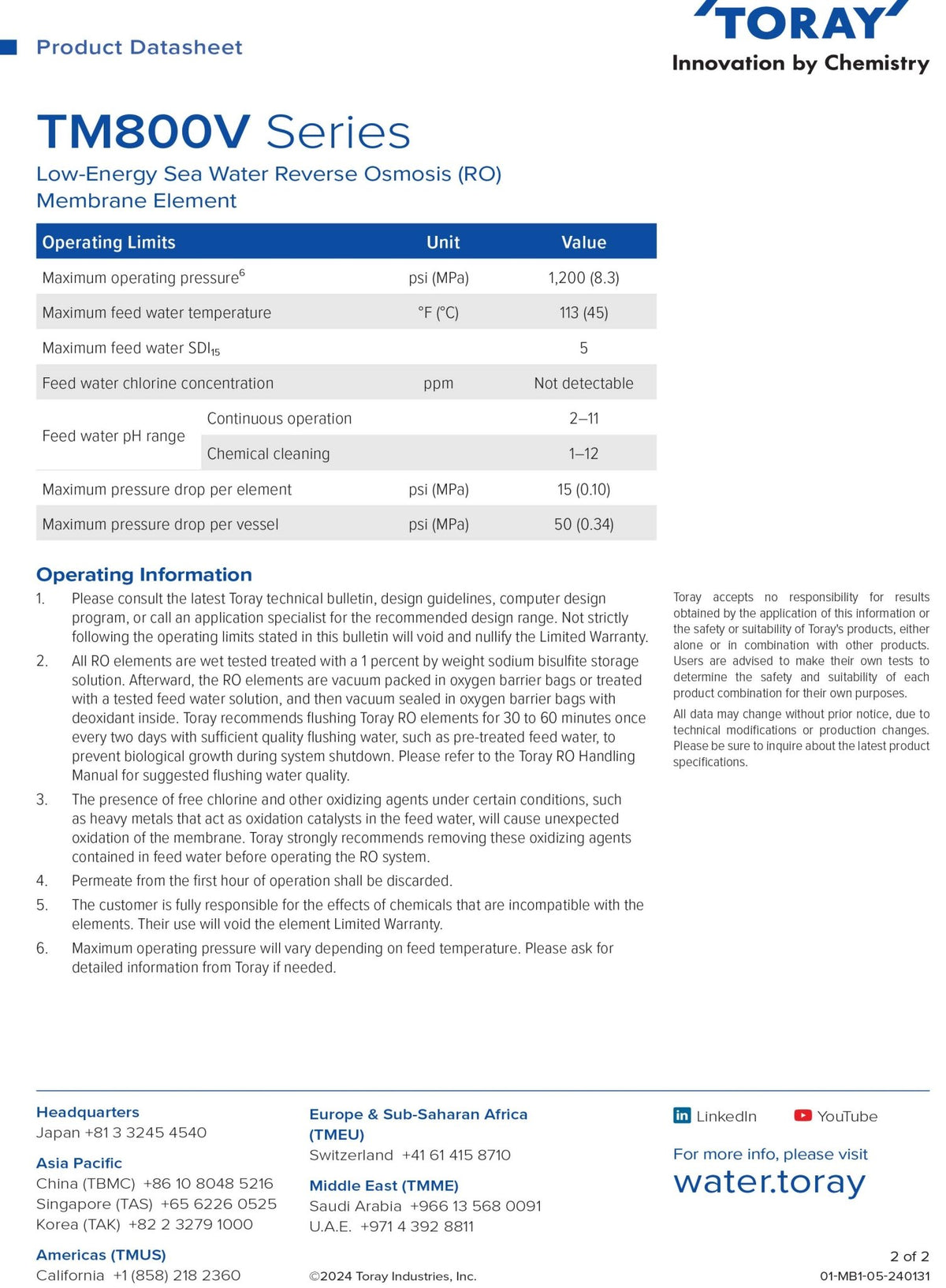

TO VIEW DATA SHEETS LARGER RIGHT CLICK SHEET AND SELECT OPEN IMAGE IN NEW TAB
| 4.0 inch high flow seawater | |||||
| Model # | Flow | Rejection | Feed Spacer | Rated pressure | |
| TM810V | 2200 | 99.70% | 31 | 800 psi(5.52MPa) | |
