We are an Authorized Distributor for Toray
The TORAY TML20D-400 is a standard 8-inch Reverse Osmosis (RO) element specifically engineered for treating low salinity brackish water and municipal water sources. Part of the TML (Toray Low Pressure Municipal) series, this element is optimized for excellent performance at ultra-low operating pressures, which drastically reduces energy consumption and operational costs.
This element is manufactured by TORAY Industries, Inc. It utilizes a durable cross-linked aromatic polyamide composite material that provides high rejection of salts and organic matter (with 99.7% nominal NaCl rejection) while maintaining a high nominal flow of 12,000 GPD at an applied pressure of just 150 psi. The 400ft2 of active surface area makes this a high-productivity element suitable for large commercial and industrial systems.

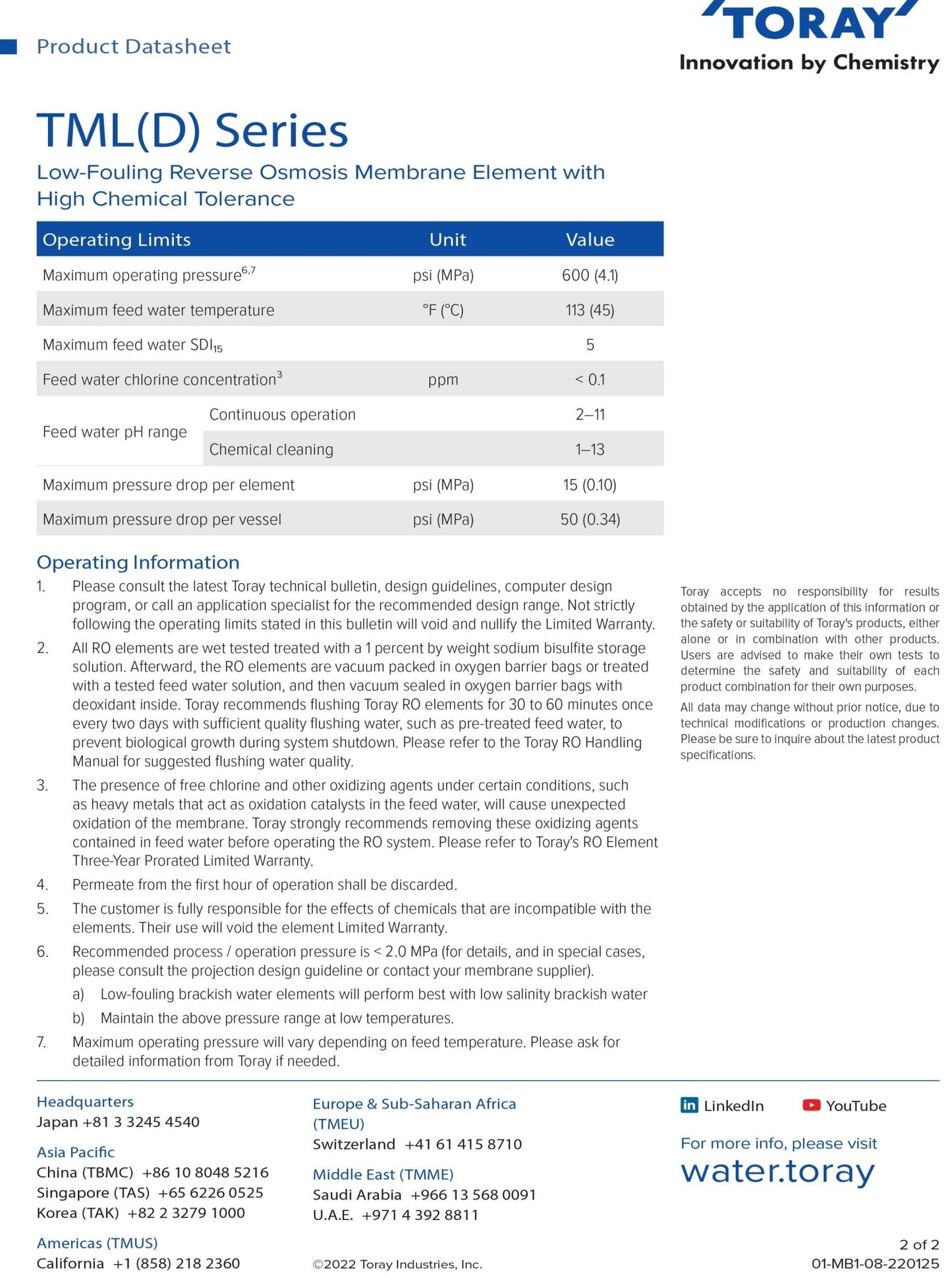

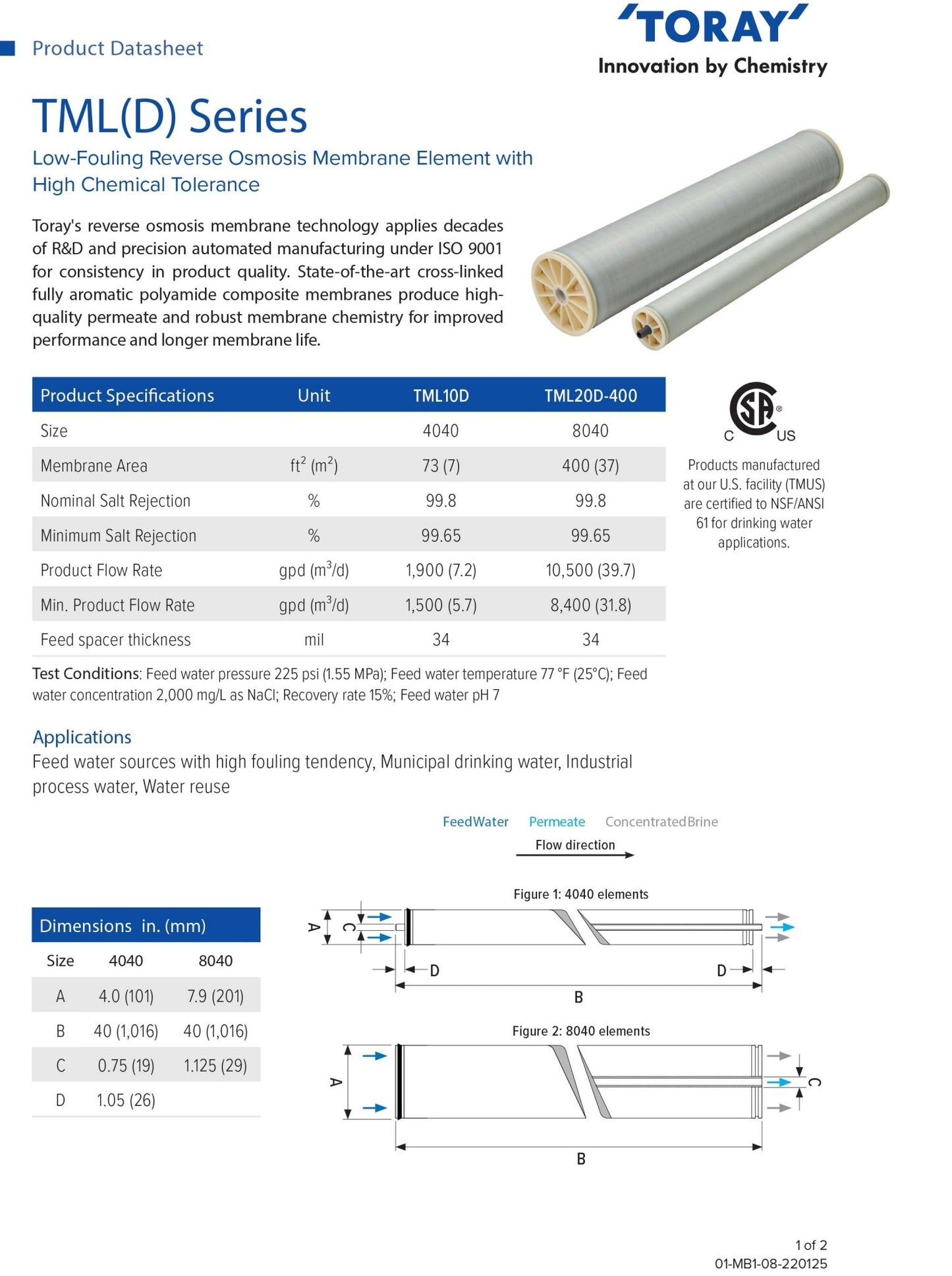

Technical Specifications Summary
| SPECIFICATION | DETAILS |
| Model Number | TML20D-400 |
| Manufacturer | TORAY |
| Membrane Type | Reverse Osmosis (RO), Low Pressure |
| Membrane Material | Cross-linked Aromatic Polyamide |
| Nominal Permeate Flow | 12,000 GPD (45.4 m3/d) |
| Nominal Rejection (NaCl) | 99.7% (Min 99.6%) |
| Test Conditions | 2,000 ppm NaCl, 150 psi, 77∘F |
| Active Area | 400ft2 (37.1m2) |
| Element Size | 8.0 in D x 40 in L |
| Max Applied Pressure | 600 psi (4.1 MPa) |
| Max Operating Temp | 113∘F (45∘C) |
| Free Chlorine Tolerance | <0.1 ppm |
