TW30HP-2526 FilmTec™ DOW / DuPont 1,200 GPD at 225 PSI 2.5 x 26 inch Membranes
Couldn't load pickup availability
TW30HP-2526 FilmTec™ DOW / DuPont 1,200 GPD at 225 PSI 2.5 x 26 inch Membranes
-
Financing Options Available at Checkout via Shop Pay & Paypal!
-
For International Shipping Contact Us for a Quote!
PLEASE REFERENCE TABLE BELOW

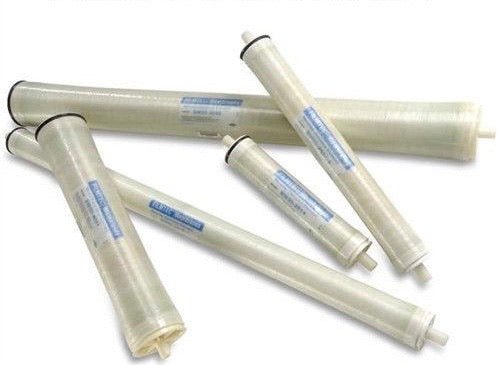

DuPont FilmTec™ TW30HP-2526 High Performance RO Membrane
The DuPont FilmTec™ TW30HP-2526 is a Tap Water Reverse Osmosis (RO) membrane element engineered for high performance in small commercial and residential multi-family RO systems. The "HP" designation signifies its ability to achieve a high permeate flow rate of 1,200 GPD under standard test conditions, making it an excellent choice for applications requiring high flow but limited space.
This 2.5-inch diameter by 26-inch length element uses FilmTec's advanced polyamide thin-film composite chemistry to ensure high salt rejection, with a nominal rejection rate of 99.5%. The element's design is optimized for low-energy operation compared to standard brackish water membranes, making it a reliable and cost-effective choice for improving the quality of municipal or non-aggressive well water sources.
Technical Specifications Summary
| SPECIFICATION | DETAILS | NOTES |
| Model Number | TW30HP-2526 | 2.5-inch diameter, 26-inch length. |
| Manufacturer | DuPont Water Solutions (FilmTec) | High Performance (HP) model. |
| Membrane Type | Reverse Osmosis (RO), Tap Water | Designed for low pressure operation on tap water sources. |
| Nominal Permeate Flow | 1,200 GPD (4.5 m3/d) | Flow rates are nominal and based on standard test conditions. |
| Nominal Rejection (NaCl) | 99.5% | High rejection rate for tap water applications. |
| Test Conditions | 1,500 ppm NaCl, 225 psi, 77∘F | Standard conditions for this class of membrane. |
| Active Area | 28ft2 (2.6 m2) | Active membrane surface area. |
| Max Applied Pressure | 600 psi (41 bar) | Maximum limit for continuous operation. |
